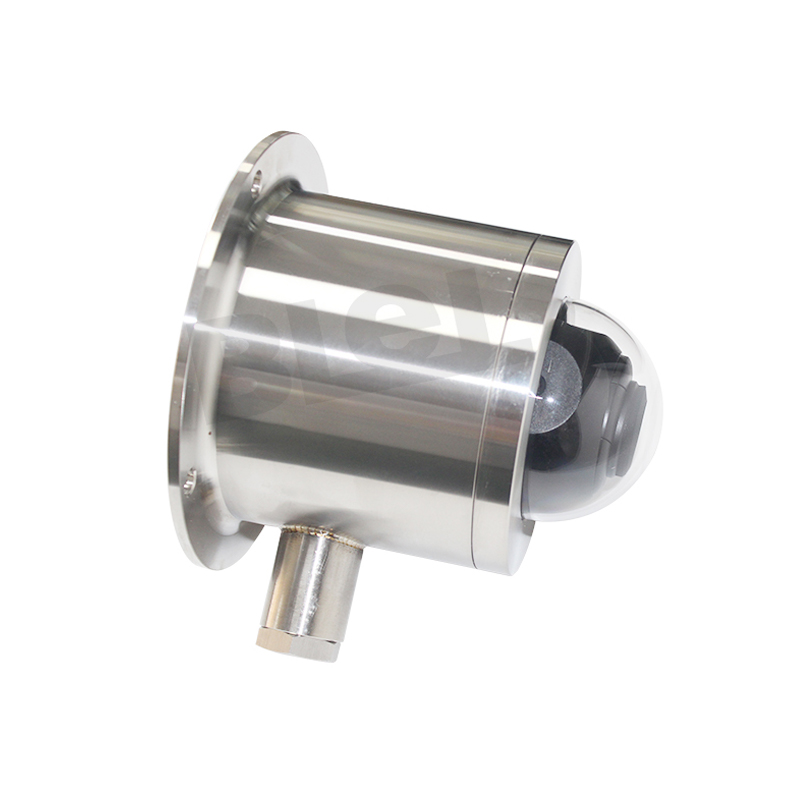

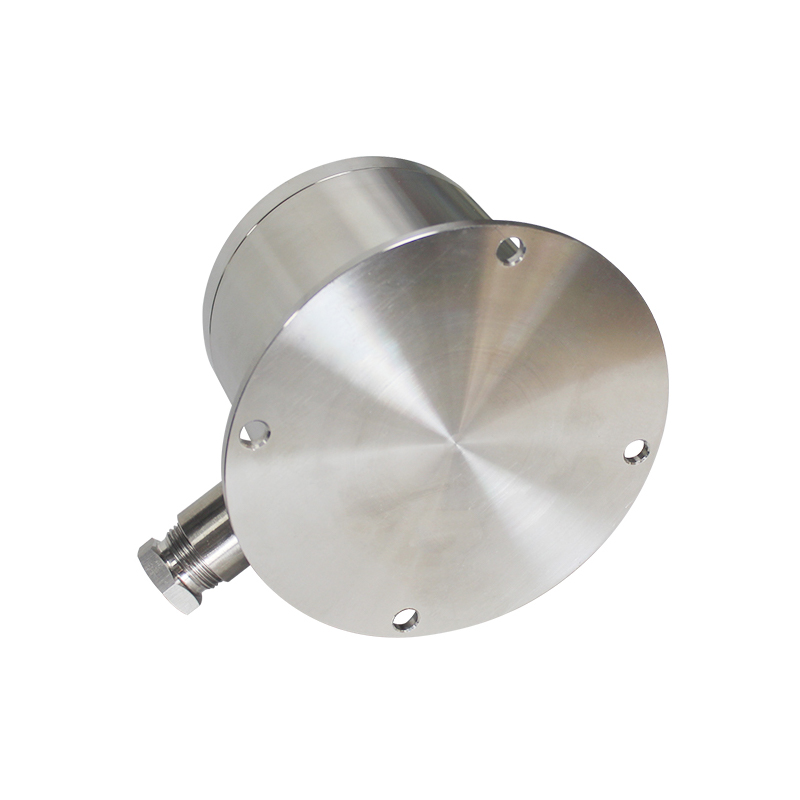

Home / Product / Analog camera / Explosion-proof hemisphere / 1200 lines / BL-EX410PI(2.8/4/6mm) 1200 line infrared 30m fixed focus analog explosion-proof dome camera
Application scenarios:
The equipment has obtained the highest certification of Class II explosion-proof level and the highest certification of temperature (T) level. It is suitable for Zone 0, Zone 1, Zone 2 with IIA, IIB, IIC environment, and explosive mixtures formed by explosive and flammable gases and air in groups T1~T6. Zone 20, Zone 21 and Zone 22 where explosive and flammable dust is mixed with air, except for coal mine methane gas, other explosive gas and dust environments. Such as: refining, oil production, gas production, chemical industry, fireworks production, food processing and storage, gas stations and other environments.
Features:
· Explosion proof mark: Exd IIC T6 Gb /ExtD A21 IP68 T80℃
· Protection class: IP68
· Product standard: Q/006-2016
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC/DC POE power supply mode
· The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment
model | BL-EX410PI |
name | 1200 line analog infrared fixed focus waterproof explosion-proof dome camera |
sensor type | 1/3inch NTSC/PAL COMS |
signal system | PAL/NTSC |
Effective Pixels | 1200TVL |
shutter | 1/50(1/60)-1/10000sec |
Minimum illumination | 0.1Lux @ (F1.2,AGC ON),0Lux with IR |
lens | 3.6mm (2.8mm, 6mm, 8mm optional) |
lens type | M12 |
Day and night switching mode | ICR infrared filter type |
Synchronously | Intrasync |
frame rate | 4Mega@25fps |
| 2Mega@25fps |
CVBS video output | 1.0Vp-p (75Ω/BNC) |
signal to noise ratio | Greater than 48dB |
auto gain | support |
Color/B&W | Auto/Color/B&W |
white balance | automatic |
BLC | support |
Noise reduction | 2D noise reduction |
language | Chinese |
Operating temperature and humidity | -40℃~60℃, humidity less than 90% (no condensation) |
power supply | DC12V±25% |
Power consumption | 4.1W MAX |
Protection class | IP67 |
Infrared irradiation distance | 30m |
weight | 5kg |
Accessories:
Explosion-proof hemisphere wall bracket BL-EX20LB
Explosion-proof hemisphere hoisting bracket BL-EX40IA
Explosion-proof camera junction box 200X150X100
Explosion-proof camera hose BL-EX100P
Ordering Information:
304 stainless steel 1200 line fixed focus analog infrared explosion-proof dome camera BL-EX410PI
316L stainless steel 1200 line fixed focus analog infrared explosion-proof dome camera BL-EX410PI/316L
