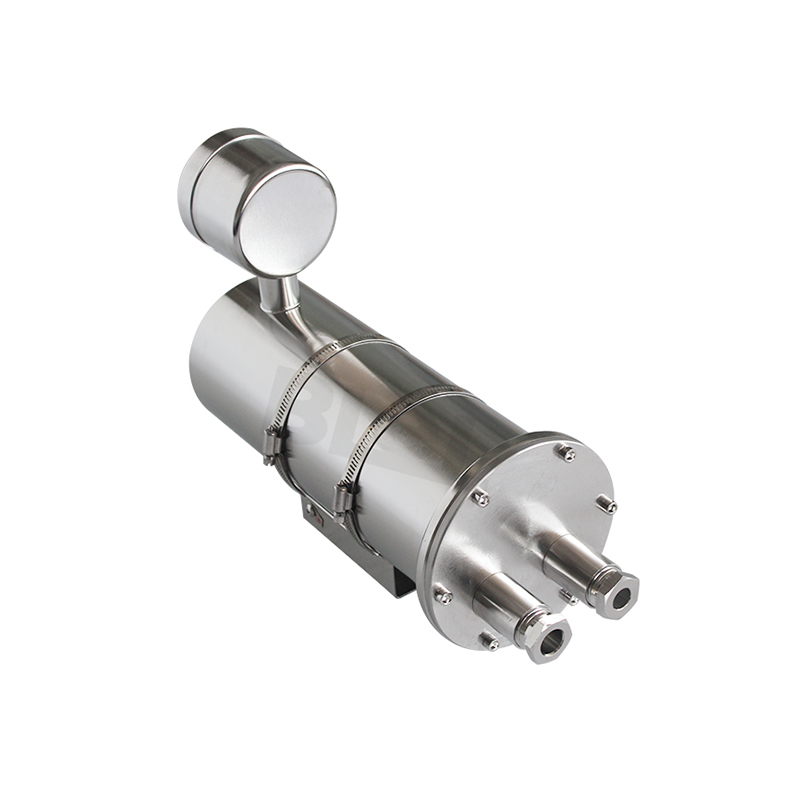

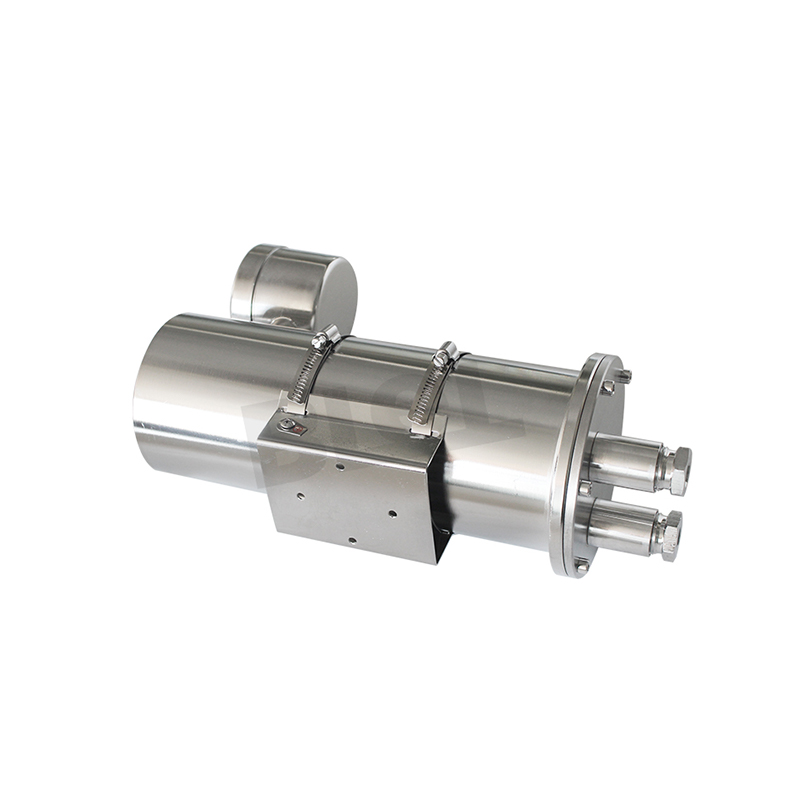

Home / Product / Web video camera / Explosion-proof infrared bolt / 1.3 million / BL-EX315(P)-I8(4/6/8/12mm) 1.3 million infrared 100m fixed focus explosion-proof network camera
Application scenarios:
The equipment has obtained the highest certification of Class II explosion-proof level and the highest certification of temperature (T) level. It is suitable for Zone 0, Zone 1, Zone 2 with IIA, IIB, IIC environment, and explosive mixtures formed by explosive and flammable gases and air in groups T1~T6. Zone 20, Zone 21 and Zone 22 where explosive and flammable dust is mixed with air, except for coal mine methane gas, other explosive gas and dust environments. Such as: refining, oil production, gas production, chemical industry, fireworks production, food processing and storage, gas stations and other environments.
Features:
· Explosion proof mark: Exd IIC T6 Gb /ExtD A21 IP68 T80℃
· Protection class: IP68
· Product standard: Q/006-2016
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC/DC POE power supply mode
· The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment
maximum image size | 1280 × 960 |
sensor type | 1/3" Progressive Scan CMOS |
Minimum illumination | color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
frame rate | Main stream: 50Hz: 25fps (1280 × 960, 1280 × 720) |
Substream: 50Hz: 25fps (640 × 480, 320 × 240, 352 × 288) | |
lens | 4 mm, Horizontal field of view: 70.2°(6 mm(45.7°), 8 mm(35°), 12 mm (22°) optional) |
Wide dynamic range | digital wide dynamic |
shutter | 1/3 s ~ 1/100,000 s |
Day and night switching mode | ICR Infrared filter type |
Image settings | saturation, brightness, contrast, sharpness, AGC, white balance, Adjustable via client or browser |
image enhancement | BLC, 3D digital noise reduction |
video compression standard | H.264 |
H.264 encoding type | Baseline Profile / Main Profile |
Video compression bit rate | 32 Kbps ~ 8 Mbps |
supporting agreement | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, |
UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
Interface Protocol | ONVIF(PROFILE S), ISAPI |
General function | heartbeat, mirror, password protection, video cover, watermarking technology |
Alarm function | Motion Detection, occlusion alarm, Illegal login |
Communication Interface | 1 RJ45 10 M/100 M Adaptive Ethernet port |
Protection class | IP68 |
power supply | DC12 V ± 25% / "P" model PoE(802.3af) |
farthest infrared distance | 100m |
Power consumption | Non-PoE: 5 W Max |
PoE: 6.5 W Max | |
Operating temperature and humidity | -30℃ ~ 60℃, Humidity less than 95% (non-condensing) |
weight | 7kg |
Image correlation
• 1/3" Progressive Scan CMOS
• 1280 × 960 @25fps
• 0.01 Lux @ (F1.2, AGC ON)
• H.264 encoding
• Digital WDR
• Backlight compensation, 3D digital noise reduction
• EZVIZ cloud platform access
• Infrared fill light, up to 100m
• IP68
Accessories:
Explosion-proof camera wall mount BL-EX40LA
Explosion-proof camera hoisting bracket BL-EX40IA
Explosion-proof camera junction box BL-EXC200A
Explosion-proof camera hose BL-EX100P
Ordering Information:
304 stainless steel 1.3 million fixed focus infrared explosion-proof network camera BL-EX315-I8
304 stainless steel 1.3 million Poe fixed focus infrared explosion-proof network camera BL-EX315P-I8
