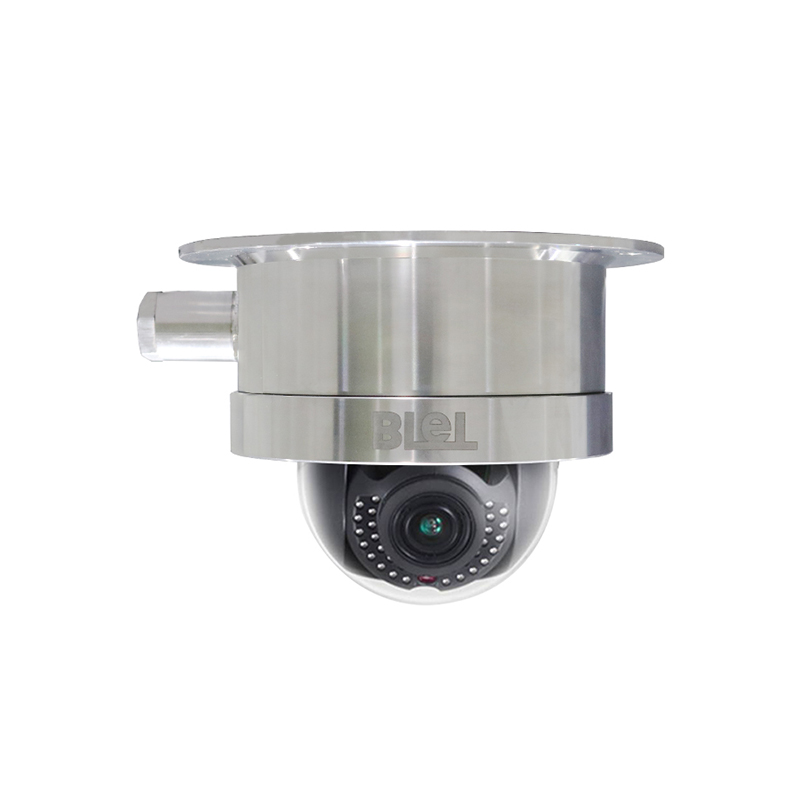

BL-EX4104PIZ(2.8-12mm) 1.3 million 4x electric zoom infrared explosion-proof network dome camera

BL-EX4104PIZ(2.8-12mm) 1.3 million 4x electric zoom infrared explosion-proof network dome camera

Application scenarios:
The equipment has obtained the highest certification of Class II explosion-proof level and the highest certification of temperature (T) level. It is suitable for Zone 0, Zone 1, Zone 2 with IIA, IIB, IIC environment, and explosive mixtures formed by explosive and flammable gases and air in groups T1~T6. Zone 20, Zone 21 and Zone 22 where explosive and flammable dust is mixed with air, except for coal mine methane gas, other explosive gas and dust environments. Such as: refining, oil production, gas production, chemical industry, fireworks production, food processing and storage, gas stations and other environments.

Features:
· Explosion proof mark: Exd IIC T6 Gb /ExtD A21 IP68 T80℃
· Protection class: IP68
· Product standard: Q/006-2016
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC/DC POE power supply mode
· The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment

contact us
  • BL-EX4104PIZ(2.8-12mm) 1.3 million 4x electric zoom infrared explosion-proof network dome camera
model BL-EX4104PIZ(2.8-12mm)(2.8-12mm)
name 1.3 million 1/3" CMOS ICR Day and Night Dome IP Camera
sensor type 1/3" Progressive Scan CMOS
shutter 1/3 second to 1/100,000 second
Auto iris DC drive
Adjust the angle Horizontal: 0°~355°, Vertical: 0°~75°, Rotate 0°~355°
Day and night switching mode ICR infrared filter type
Wide dynamic range digital wide dynamic
BLC Yes, selectable region
video compression standard H.264/MJPEG
Compressed output bit rate 32 Kbps~8Mbps
Audio compression bit rate 64Kbps (G.711) / 16Kbps (G.726) / 32-128Kbps(MP2L2)
maximum image size 1280×960
frame rate 50Hz: 25fps (1280 × 960), 25fps (1280 × 720)
60Hz: 30fps (1280 × 960), 30fps (1280 × 720)
Resolution and frame rate of the third stream Independent of the main stream settings, supports up to:
50Hz: 25fps (1280 × 720)
60Hz: 30fps (1280 × 720)
Image settings Corridor Mode, Saturation, Brightness, Contrast, Sharpness can be adjusted by client or browser
BLC support, selectable area
Strong light suppression support
Electronic image stabilization support
through fog support
image overlay Support BMP 24-bit image overlay, selectable area
Day and night conversion method Automatic, timing, alarm trigger
area of ​​interest ROI supports dual stream to set 4 fixed areas respectively
Smart function Out-of-bounds detection, regional intrusion detection, audio anomaly detection, virtual focus detection, motion detection, dynamic analysis
Storage function Support Micro SD/SDHC/SDXC card (128G) off-network local storage, NAS (NFS, SMB/CIFS are supported)
Interface Protocol ONVIF,PSIA,CGI,ISAPI,GB28181
Smart alarm Motion detection, face detection, dynamic analysis, occlusion alarm, network cable disconnection, IP address conflict, memory full, memory error
supporting agreement TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General function One-key recovery, anti-flicker, three-stream, heartbeat, mirroring, password protection, video cover, watermark technology,
Anonymous access, IP address filtering
Interface Type G3/4*1
audio port 1 pair of 3.5mm audio input (Line in)/output external interface
Communication Interface 1 RJ45 10M/100M adaptive Ethernet port, 1 RS-485 interface
Alarm input 1 way
Alarm Output 1 way
video output 1Vp-p Composite Output (75Ω/BNC)
Operating temperature and humidity -30℃~60℃, humidity less than 95% (no condensation)
power supply DC12V±10% / PoE
Power consumption 6W~9W MAX
(Infrared light 2W, electric lens 1W)
Riot class IK10
Infrared irradiation distance 30 meters
weight 6kg

Main features

The highest resolution is up to 1280×960 @ 30 fps, at which real-time images can be output
Adopt video compression technologies such as ROI and SVC, with high compression ratio, very flexible processing and ultra-low bit rate
· Progressive scan CMOS, capturing motion images without aliasing
Optional high-efficiency infrared light, long service life, the irradiation distance can reach 30 meters
· Can support PoE power supply function
· Support 3D digital noise reduction
· Support Micro SD/SDHC/SDXC card (128G) local storage
· Support three streams, support mobile phone monitoring
· Support corridor mode, backlight compensation, automatic electronic shutter function, adapt to different monitoring environments
Support cross-border detection, regional intrusion detection, audio anomaly detection, virtual focus detection, motion detection, dynamic analysis and other alarm functions
· Full-featured: one-key recovery, heartbeat, mirroring, etc.
· With three-axis adjustment function, it is convenient for engineering installation
· Anti-riot IK10
· Support GB28181 protocol

Accessories:

Explosion-proof hemisphere wall bracket BL-EX20LB(Z)

Explosion-proof hemisphere hoisting bracket BL-EX40IA(Z)

Explosion-proof camera junction box BL-EXC200A

Explosion-proof camera hose BL-EX100P

Ordering Information:

304 stainless steel 1.3 million Poe electric zoom infrared explosion-proof network dome camera BL-EX4104H5PIZ

316L stainless steel 1.3 million Poe electric zoom infrared explosion-proof network dome camera BL-EX4104H5PIZ/316L
