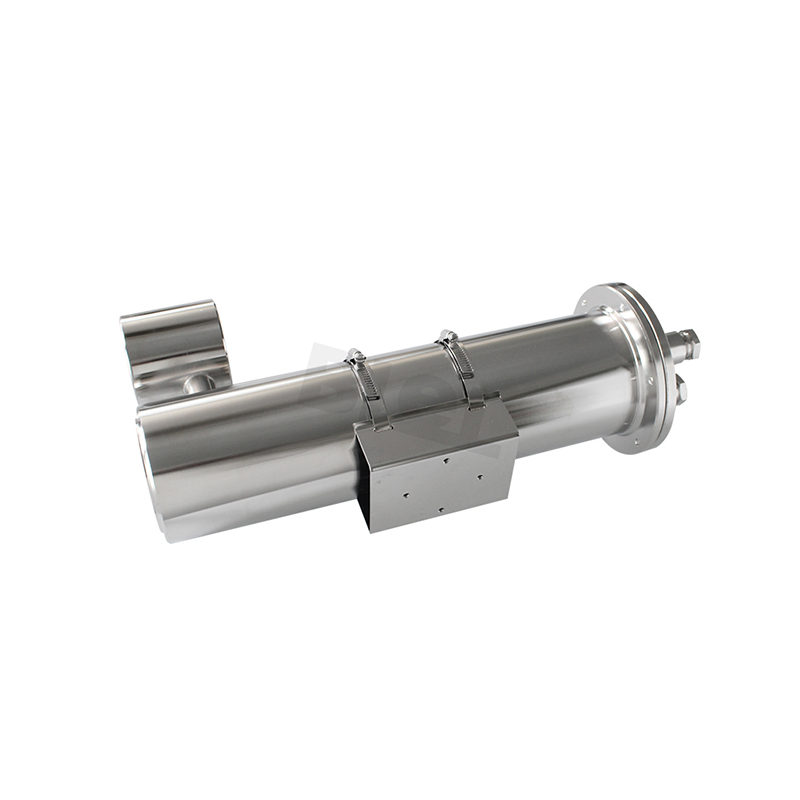

KBA127-I8T1 1 million infrared 100 meters coaxial analog dual-purpose mine explosion-proof camera

KBA127-I8T1 1 million infrared 100 meters coaxial analog dual-purpose mine explosion-proof camera

Application scenarios:
The equipment has obtained the highest certification of Class II explosion-proof level and the highest certification of temperature (T) level. It is suitable for Zone 0, Zone 1, Zone 2 with IIA, IIB, IIC environment, and explosive mixtures formed by explosive and flammable gases and air in groups T1~T6. Zone 20, Zone 21, Zone 22 where explosive and flammable dust is mixed with air, such as coal mine methane gas, explosive gas, dust environment. Such as: refining, oil production, gas production, chemical industry, fireworks production, food processing and storage, gas stations and other environments.

Features:

· Mine safety sign number: MFA190043
· Explosion proof mark: Ex d I Mb
· Protection class: IP68
· Product standard: GB3836-2010, MT 209-1990, Q/BL927001-2018
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC/DC POE power supply mode
· The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment

contact us
  • KBA127-I8T1 1 million infrared 100 meters coaxial analog dual-purpose mine explosion-proof camera
  • KBA127-I8T1 1 million infrared 100 meters coaxial analog dual-purpose mine explosion-proof camera
  • KBA127-I8T1 1 million infrared 100 meters coaxial analog dual-purpose mine explosion-proof camera

model

KBA127-I8T1

name

1.3 million analog coaxial dual-purpose infrared waterproof mine explosion-proof camera

sensor type

1.3 Mega Progressive Scan CMOS

total pixels

1280(horizontal)×960(vertical)

Minimum illumination

0.01Lux @ (F1.2,AGC ON),0Lux with IR

shutter

1/25 second to 1/100,000 second

lens

3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional)

lens type

M12

Day and night switching mode

ICR infrared filter type

Synchronously

Intrasync

frame rate

720p@25fps

HD video output

1 channel BNC coaxial HD, in line with HDTVI standard

CVBS video output

1 channel 1Vp-p Composite Output(75Ω/BNC)

signal to noise ratio

Greater than 62dB

Operating temperature and humidity

-40℃~60℃, humidity less than 90% (no condensation)

power supply

DC12V±15%/AC127V

Power consumption

4W MAX

Infrared irradiation distance

100m

Protection class

IP68

weight

12kg

Image related:

● Adopt megapixel progressive scan CMOS to capture moving images without aliasing

● Support coaxial high-definition output, the image is clear and delicate, the resolution is up to 720p

● Support coaxial high-definition output and standard-definition CVBS analog output (multiplexing 1 BNC interface),

● Can be switched between control lines (default HDTVI output)

● Low illumination, 0.01Lux @ (F1.2,AGC ON), 0 Lux with IR

● Support ICR infrared filter type automatic switching, automatic color to black function, realize day and night monitoring

● Support intelligent SMART IR function, effectively prevent the problem of near infrared overexposure

● Matrix spot lens is used to match the sensor area and greatly improve the utilization rate of light energy

● Comply with IP68 waterproof design, high reliability

Accessories:

Mine explosion-proof camera wall mount bracket BL-EX55LA

Mine explosion-proof camera universal joint BL-EX10ZA

Mine explosion-proof camera junction box 400X300X200

Ordering Information:

KBA127-I8T1 (4mm) explosion-proof camera for underground mine

KBA127-I8T1 (6mm) explosion-proof camera for underground mine

KBA127-I8T1 (8mm) explosion-proof camera for underground mine

KBA127-I8T1 (12mm) explosion-proof camera for underground mine

KBA127-I8T1F (4mm) Coal mine underground fiber optic mine explosion-proof camera

KBA127-I8T1F (6mm) Coal Mine Underground Optical Fiber Mine Explosion-Proof Camera

KBA127-I8T1F (8mm) Coal Mine Underground Optical Fiber Mine Explosion-Proof Camera

KBA127-I8T1F (12mm) Coal mine underground fiber optic mining explosion-proof camera
