Application scenarios:
The equipment has obtained the highest certification of Class II explosion-proof level and the highest certification of temperature (T) level. It is suitable for Zone 0, Zone 1, Zone 2 with IIA, IIB, IIC environment, and explosive mixtures formed by explosive and flammable gases and air in groups T1~T6. Zone 20, Zone 21 and Zone 22 where explosive and flammable dust is mixed with air, except for coal mine methane gas, other explosive gas and dust environments. Such as: refining, oil production, gas production, chemical industry, fireworks production, food processing and storage, gas stations and other environments.
Features:
· Explosion proof mark: Exd IIC T6 Gb /ExtD A21 IP68 T80℃
· Protection class: IP68
· Product standard: Q/006-2016
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC/DC POE power supply mode

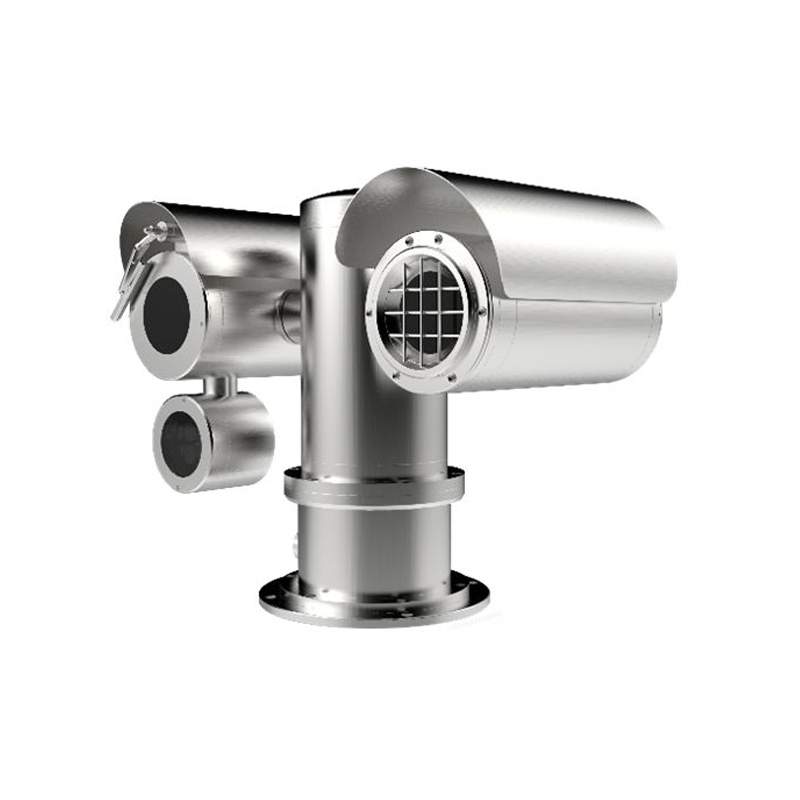

name | Dual Spectrum Explosion-Proof Thermal Imaging Pan-Tilt Camera | ||
model | BL-EX9225T1W(H)-IBW | ||
Thermal imaging parameters: | |||
sensor type | Vanadium Oxide Uncooled Detector | ||
maximum image size | 160×120 (default output is 320×240) | ||
Cell size | 17μm | ||
response band | 8~14μm | ||
NETD (Noise Equivalent Temperature Difference) | ≤ 40mk(@25°C,F# | ||
Thermal imaging lens focal length | 3mm | 6mm | 10mm |
MRAD (spatial resolution) | 5.48 | 2.74 | 1.7 |
Thermal imaging field of view | 50°×37.2° | 25°×18.7 | 15.96°×12° |
Thermal imaging close-up | 0.3m | 1.1m | 3m |
F value | 1.1 | ||
Pseudo-color mode | 15 kinds of white heat, black heat, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, sepia, color 1, color 2, ice fire, rain, red heat, green heat, dark blue, etc. | ||
Behavior analysis | Thermal imaging channel (default): out-of-bounds detection, area intrusion detection, entry/exit area detection | ||
| Visible light channel: out-of-bounds detection, area intrusion detection, entry/exit area detection | ||
fireworks detection | Support dynamic fire point detection, support up to 10 fire point displays | ||
smoking test | Support for smoking detection | ||
Linkage alarm | Support linkage white light alarm, support linkage sound alarm | ||
Abnormal temperature function | Full screen temperature measurement | ||
| Expert mode: 10 points, 10 boxes, 1 line for a total of 21 temperature measurement rules | ||
Body temperature measurement | Support AI face detection, multi-target simultaneous detection of body temperature | ||
Temperature measurement range | Temperature measurement range: -20℃~150℃ | ||
Temperature measurement accuracy | Temperature measurement accuracy: ±8°C or ±8% of reading (take the maximum value) | ||
video compression standard | H.265/H.264/MJPEG | ||
H265 encoding type | Main Profile | ||
H264 encoding type | BaseLine Profile / Main Profile / High Profile | ||
Video compression bit rate | 32Kbps~8Mbps | ||
audio compression standard | G.711/G.722.1/G.726/MP2L2/PCM | ||
Audio compression bit rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2) | ||
SD card storage | Support Micro SD/Micro SDHC/Micro SDXC card ((128GB or 256GB) disconnected network local storage and disconnected network resume | ||
NVR storage | Support NVR access, support preview/playback, rule display (behavior | ||
| Analysis, temperature measurement, fire point), alarm event upload (behavior analysis, temperature measurement, fire point), remote | ||
main stream | Thermal imaging: 25fps (160 × 120 (output 320 × 240)) | ||
substream | Thermal imaging: 25fps (160 × 120 (output 320 × 240)) | ||
Network protocol | IPv4/IPv6,HTTP,HTTPS,802.1x,QoS,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour | ||
Interface Protocol | ONVIF(PROFILE S,PROFILE G),ISAPI,SDK,Ehome,GB28181 | ||
Maximum number of preview channels | 20 Road | ||
User Management | Support three-level user rights management, administrator, operator, common user | ||
security strategy | Support authorized users and passwords, support HTTPS encryption and IEEE 802.1x network access control, IP address filtering | ||
Alarm input | Support 2-channel DC 0~5V alarm input | ||
Alarm Output | Support 2-way normally open relay output, alarm type can be set | ||
audio input | 1 channel 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p] | ||
Audio output | 1ch Impedance: 600Ω | ||
Reset button | 1 reset button | ||
network port | 1 RJ45 interface 10/100M adaptive Ethernet port | ||
RS485 interface | 1 way | ||
SD card storage | 1 built-in SD card slot | ||
client | Computer client, mobile APP | ||
browser | Support IE7, Chrome18, Firefox5.0, Safari5.02 browser, support multiple languages | ||
power input | DC 12 V (±20%) or PoE (802.3af, class 3). Remarks: The package comes standard with a DC 12V power adapter | ||
power | DC 12 V (±20%): 0.7 A, max. 8W | ||
| PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8.5W | ||
Operating temperature and humidity | -40℃~70℃, <95% RH | ||
Camera parameters: | |||
sensor type | 1/2.8" Progressive Scan CMOS | ||
scan system | line-by-line scan | ||
signal system | PAL/NSTC | ||
video output | network coding output | ||
Resolution | 50HZ: 25fps(1920X1080) 60HZ: 30fps(1920X1080) | ||
| 50HZ: 25fps(1280X720) 60HZ: 30fps(1280X720) | ||
Minimum illumination | Color: 0.05Lux @ (F1.6, AGC ON) | ||
| Black and white: 0.01Lux @ (F1.6, AGC ON) | ||
signal to noise ratio | >52dB | ||
focal length | 4.8-120mm, 25x optical zoom | ||
Aperture value | F1.6-F3.5 | ||
Horizontal field of view | 57.6-2.5 degrees (Wide-Telephoto) | ||
close-up | 100mm-1500mm (wide-angle-telephoto) | ||
Zoom speed | About 3.6 seconds (optical, wide-angle-telephoto) | ||
Day and night switching mode | ICR filter | ||
focus mode | automatic/manual/semi-automatic | ||
exposure mode | Auto Exposure/Aperture Priority/Shutter Priority/Manual Exposure | ||
Day and night mode | Auto/color/black and white/timing/alarm input trigger | ||
electronic shutter | 1/1 second ~ 1/30,000 second | ||
white balance | Auto1/Auto2/Indoor/Outdoor/Manual/Incandescent/Fluorescent | ||
BLC | Off/Up/Down/Left/Right/Center/Auto | ||
gain | 16 levels adjustable | ||
Dead pixel compensation | support | ||
wide dynamic | off/on | ||
Strong light suppression | switch | ||
digital noise reduction | 3D | ||
Lens initialization | built-in | ||
Image quality adjustment | Brightness, contrast, sharpness, saturation can be adjusted | ||
digital zoom | 12x | ||
wiper | Remote on/off | ||
video compression | H.265/H.264 | ||
Compressed output bit rate | 32kbps-16Mbps | ||
audio compression | G.722.1, G.711-a law, G.711-u law, MP2L2, G.726, AAC, PCM | ||
Storage function | Support Micro SD/ Micro SDHC/Micro SDXC storage | ||
Image settings | Movement functions can be adjusted through the client or IE browser | ||
Smart alarm | Motion detection, occlusion alarm, memory full, memory error, audio anomaly detection, out-of-bounds detection, regional intrusion detection | ||
supporting agreement | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP, optional), GB28181, E-HOME | ||
Interface Protocol | ONVIF, ISAPI, SDK | ||
three stream | support | ||
Heartbeat function | support | ||
Security Mechanism | Password protection, multi-user access control | ||
External Interface | Ethernet port, RS485, Alarm In/Out, Line In/Out, CVBS, | ||
| Micro SD/ Micro SDHC/ Micro SDXC | ||
External communication | RS485 interface, Pelco protocol | ||
Communication Interface | 1 RJ45 10M/100M adaptive Ethernet port, 1 RS-485 interface | ||
video output | 2 cores 1Vp-p Composite Output(75Ω) | ||
audio input | 1 channel, 3.5mm audio interface (Linear level: 2.0 - 2.4Vp-p, Impedance: 1kΩ) | ||
Audio output | 1 channel, 3.5mm audio interface (Linear level, Impedance: 600Ω) | ||
Call the police | 1 channel alarm input, 1 channel alarm output | ||
power supply | DC12V±10%, support POE | ||
Operating temperature and humidity | -10℃ ~ 60℃, less than 90%RH | ||
Power consumption | Static 10W, Dynamic 15W | ||
Machine parameters: | |||
interface | 2 RJ45, 1 AC24V (extended audio alarm) | ||
power supply | AC24V (optional AC220V) | ||
Operating temperature and humidity | -10℃ ~ 60℃, less than 90%RH | ||
Power consumption | Static 110W, Dynamic 120W | ||
weight | 15kg |
Features
Smart Features:
Support behavior analysis: regional intrusion detection, out-of-bounds detection, entering area detection, leaving area detection functions.
Support indoor fire detection
Support temperature anomaly detection
Support for smoking detection
Support linkage sound alarm
Support linkage white light flashing alarm
Thermal imaging features:
Uncooled detector, resolution 160×120 (default 320×240 output)
Support AGC4.0, DDE, 3DNR
Support dual light fusion image mode
Supports visible light overlay thermal imaging picture-in-picture image mode
Supports 15 pseudo-color modes such as white heat, black heat, iron red, etc.
Accessories:
Explosion-proof PTZ Wall Mount Bracket BL-EX60LA
Explosion-proof camera junction box BL-EXC200A
Explosion-proof camera hose BL-EX100P
Ordering Information:
304 Stainless Steel Dual Spectrum Explosion-proof PTZ Camera (Temperature Measurement) BL-EX9225T1W-IBW
304 Stainless Steel Dual Spectrum Explosion-proof PTZ Camera (Fire Type) BL-EX9225T1H-IBW
316L Stainless Steel Dual Spectrum Explosion-proof PTZ Camera (Temperature Type) BL-EX9225T1W-IBW/316L
316L Stainless Steel Dual Spectrum Explosion-proof PTZ Camera (Fire Type) BL-EX9225T1H-IBW/316L
