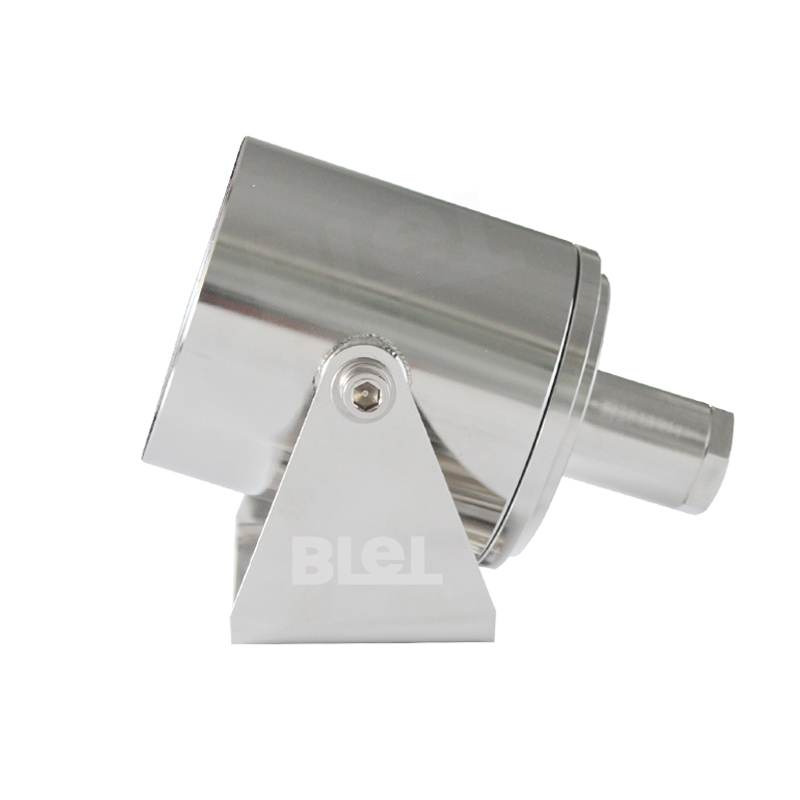

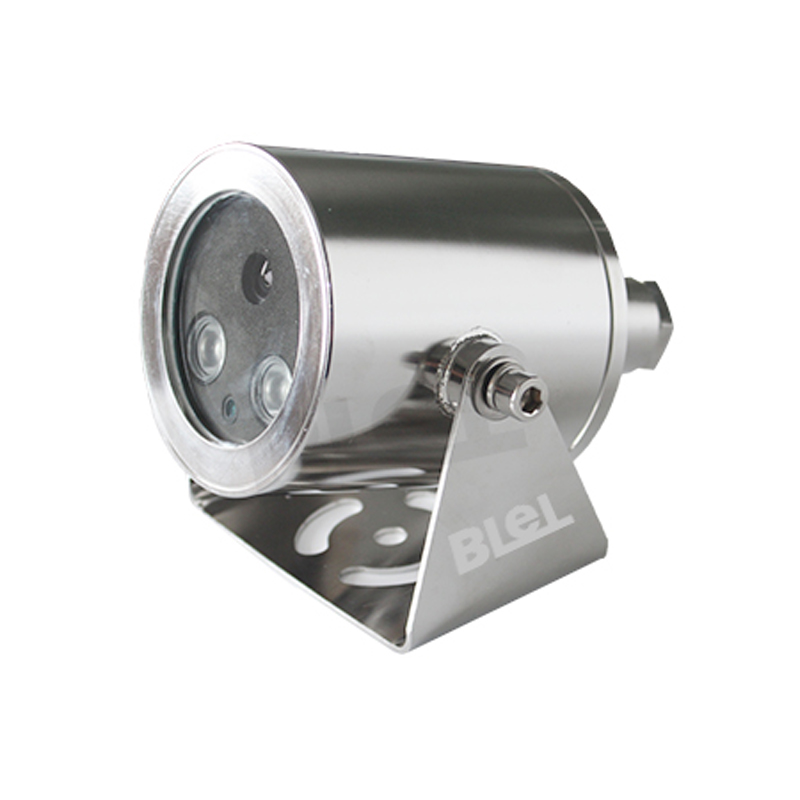

BL-EX320PM(2.8/4/6mm) 2 million infrared 30 meters 4 in 1 output analog explosion-proof camera

Application scenarios:
The equipment has obtained the highest certification of Class II explosion-proof level and the temperature ( T ) the highest level of certification, suitable for A , II B , II C surroundings, T1 ~ T6 Group of explosive mixtures of explosive and flammable gases and air 0 Area, 1 Area, 2 Areas and places where explosive and flammable dust is mixed with air 20 Area, 21 Area, 22 In addition to coal mine methane gas, other explosive gas and dust environments in the area with explosion hazard. Such as: refining, oil production, gas production, chemical industry, fireworks production, food processing and storage, gas stations and other environments.

Features:
· Explosion-proof mark: Exd IIC T6 Gb /ExtD A21 IP68 T80 °C
· Protection class: IP68
· Product Standards: Q/006-2016
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC and DC POE Power supply
· The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment

Image related:

• Adopt 200 progressive scan CMOS, Capture moving images without aliasing

• Support coaxial HD output , Clear and detailed images , Resolution up to 1080p

• low light , 0.1Lux @ (F1.2,AGC ON), 0Lux with IR

• support ICR Infrared filter type automatic switching , Automatic color to black function , Realize day and night monitoring

• support OSD menu control , Suitable for user-defined settings

• support 2D digital noise reduction , Ensure that the picture is clean and delicate in a variety of environments

• Support intelligence SMART IR Function , Effectively prevent the problem of near infrared overexposure

• meets the IP66 Grade waterproof design , High reliability

• Support coaxial video control (HIKVISION-C protocol ) Function

• TVI/AHD/CVI/CVBS The output can be switched at will according to the back-end device type

Accessories:

Explosion-proof camera junction box 200X150X100

Explosion-proof camera hose BL-EX100P

Ordering Information:

304 Stainless steel 200 Wan infrared 30 Meter 4 combine 1 Analog explosion proof camera BL-EX320PM

316L Stainless steel 200 Wan infrared 30 Meter 4 combine 1 Analog explosion proof camera BL-EX320PM/316L
