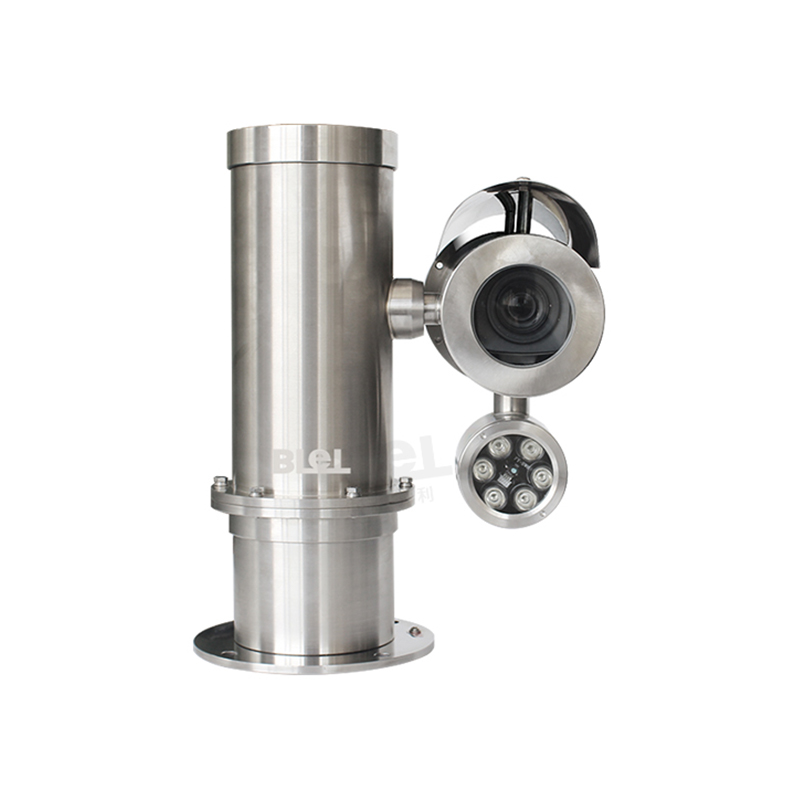

BL-EX9225IA 2 million 25 times 100 meters infrared single-cabin explosion-proof PTZ camera

BL-EX9225IA 2 million 25 times 100 meters infrared single-cabin explosion-proof PTZ camera

Application scenarios:
The equipment has obtained the highest certification of Class II explosion-proof level and the highest certification of temperature (T) level. It is suitable for Zone 0, Zone 1, Zone 2 with IIA, IIB, IIC environment, and explosive mixtures formed by explosive and flammable gases and air in groups T1~T6. Zone 20, Zone 21 and Zone 22 where explosive and flammable dust is mixed with air, except for coal mine methane gas, other explosive gas and dust environments. Such as: refining, oil production, gas production, chemical industry, fireworks production, food processing and storage, gas stations and other environments.

Features:
· Explosion proof mark: Exd IIC T6 Gb /ExtD A21 IP68 T80℃
· Protection class: IP68
· Product standard: Q/006-2016
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC/DC POE power supply mode
The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment
· Integrated structure design, there is no external connection cable between the gimbal and the camera
· It can work stably for a long time under the temperature condition of -30℃ to 60℃, and the temperature control device can be selected, which is more suitable for Should be in a low temperature environment for a long time.
· 360° continuous rotation in the horizontal direction, 90° in the vertical direction (downward) ~ -90° (upward)
· The horizontal speed is 0.1°～200°/s, and the vertical speed is 0.1°～50°/s
· Support preset point / auxiliary output / timing task function of various scanning methods
· Suitable for flammable, explosive, and harsh environments
· Built-in multi-protocol decoding board, various control protocols, corresponding to various control systems (optional preset position)
· Indoor and outdoor installation, all-weather use, easy installation and simple maintenance
High-efficiency array infrared technology, night vision distance up to 100 meters
· According to different installation scenarios, you can choose desktop/wall installation

contact us
  • BL-EX9225IA 2 million 25 times 100 meters infrared single-cabin explosion-proof PTZ camera
  • BL-EX9225IA 2 million 25 times 100 meters infrared single-cabin explosion-proof PTZ camera
  • BL-EX9225IA 2 million 25 times 100 meters infrared single-cabin explosion-proof PTZ camera

model

BL-EX9225IA

camera

sensor type

1/2.8" Progressive Scan CMOS

scan system

line-by-line scan

signal system

PAL/NSTC

video output

network coding output

Resolution

50HZ: 25fps(1920X1080) 60HZ: 30fps(1920X1080)

50HZ: 25fps(1280X720) 60HZ: 30fps(1280X720)

Minimum illumination

Color: 0.05Lux @ (F1.6, AGC ON)

Black and white: 0.01Lux @ (F1.6, AGC ON)

signal to noise ratio

>52dB

lens

focal length

4.8-120mm, 25x optical zoom

Aperture value

F1.6-F3.5

Horizontal field of view

57.6-2.5 degrees (Wide-Telephoto)

close-up

100mm-1500mm (wide-angle-telephoto)

Zoom speed

About 3.6 seconds (optical, wide-angle-telephoto)

Day and night switching mode

ICR filter

parameter settings

focus mode

automatic/manual/semi-automatic

exposure mode

Auto Exposure/Aperture Priority/Shutter Priority/Manual Exposure

Day and night mode

Auto/color/black and white/timing/alarm input trigger

electronic shutter

1/1 second ~ 1/30,000 second

white balance

Auto1/Auto2/Indoor/Outdoor/Manual/Incandescent/Fluorescent

BLC

Off/Up/Down/Left/Right/Center/Auto

gain

16 levels adjustable

Dead pixel compensation

support

wide dynamic

off/on

Strong light suppression

switch

digital noise reduction

3D

Lens initialization

built-in

Image quality adjustment

Brightness, contrast, sharpness, saturation can be adjusted

digital zoom

12x

Network features

wiper

Remote on/off

video compression

H.265/H.264

Compressed output bit rate

32kbps-16Mbps

audio compression

G.722.1, G.711-a law, G.711-u law, MP2L2, G.726, AAC, PCM

Storage function

Support Micro SD/ Micro SDHC/Micro SDXC storage

Image settings

Movement functions can be adjusted through the client or IE browser

Smart alarm

Motion detection, occlusion alarm, memory full, memory error, audio anomaly detection, out-of-bounds detection, regional intrusion detection

supporting agreement

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP, optional), GB28181, E-HOME

Interface Protocol

ONVIF, ISAPI, SDK

three stream

support

Heartbeat function

support

Security Mechanism

Password protection, multi-user access control

External Interface

Ethernet port, RS485, Alarm In/Out, Line In/Out, CVBS,

Micro SD/ Micro SDHC/ Micro SDXC

External communication

RS485 interface, Pelco protocol

General Specifications

Communication Interface

1 RJ45 10M/100M adaptive Ethernet port, 1 RS-485 interface

video output

2 cores 1Vp-p Composite Output(75Ω)

audio input

1 channel, 3.5mm audio interface (Linear level: 2.0 - 2.4Vp-p, Impedance: 1kΩ)

Audio output

1 channel, 3.5mm audio interface (Linear level, Impedance: 600Ω)

Call the police

1 channel alarm input, 1 channel alarm output

power supply

AC24V (optional AC220V)

Operating temperature and humidity

-10℃ ~ 60℃, less than 90%RH

Power consumption

Static 70W, Dynamic 75W

weight

15kg

Image related:

l 2 million pixels progressive scan 1/2.8”CMOS

l Maximum resolution up to 1920X1080

l 25x optical zoom, focal length is 4.8-120mm

l Minimum illumination: color 0.05lux@1.6

l Support ICR infrared filter type automatic switching

l Wide dynamic 120db

l 3D-DNR

l Support H.265 efficient compression algorithm, greatly reducing the bit rate

l Network output

l Rich interface, convenient function expansion

l Small size and low power consumption

l Seamless access to mainstream platforms and other network devices

Accessories:

Explosion-proof PTZ Wall Mount Bracket BL-EX60LA

Explosion-proof camera junction box BL-EXC200A

Explosion-proof camera hose BL-EX100P

Ordering Information:

304 stainless steel 3 million 20 times explosion-proof PTZ camera BL-EX9320IA

316L stainless steel 3 million 20 times explosion-proof PTZ camera BL-EX9320IA/316L
