Brearley - Top 10 Chinese Security Brands

Home / Product / Web video camera / High temperature camera / 2 million / BL-EX325IF(4/6/8/12mm) 2 million fixed focus infrared 50m high temperature air-cooled camera

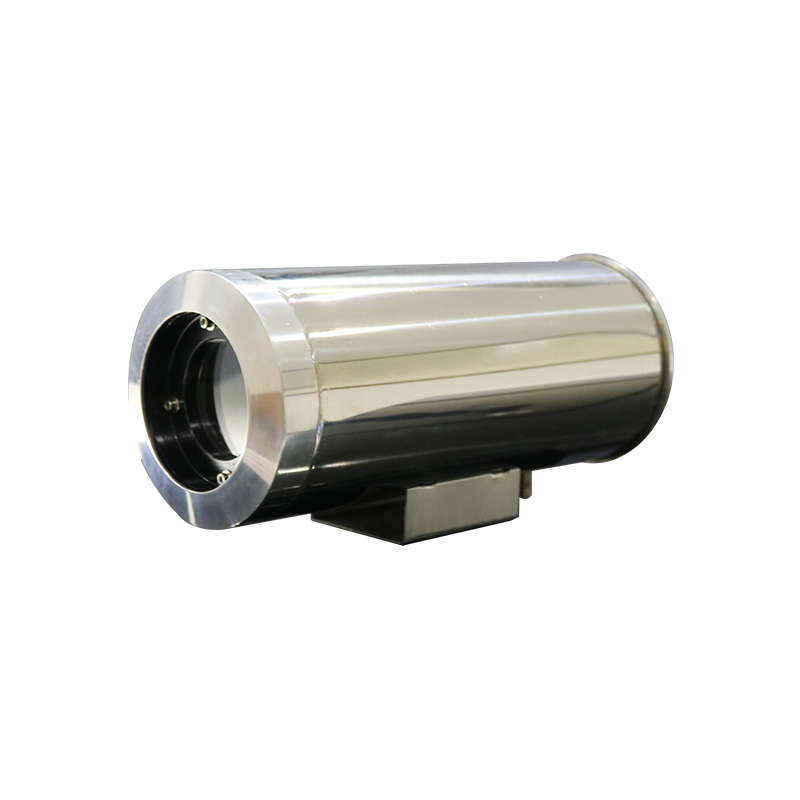

BL-EX325IF(4/6/8/12mm) 2 million fixed focus infrared 50m high temperature air-cooled camera

BL-EX325IF(4/6/8/12mm) 2 million fixed focus infrared 50m high temperature air-cooled camera

Application scenarios:
The equipment has obtained the highest certification of Class II explosion-proof level and the highest certification of temperature (T) level. It is suitable for Zone 0, Zone 1, Zone 2 with IIA, IIB, IIC environment, and explosive mixtures formed by explosive and flammable gases and air in groups T1~T6. Zone 20, Zone 21 and Zone 22 where explosive and flammable dust is mixed with air, except for coal mine methane gas, other explosive gas and dust environments. Such as: refining, oil production, gas production, chemical industry, fireworks production, food processing and storage, gas stations and other environments.

Features:
· Explosion proof mark: Exd IIC T6 Gb /ExtD A21 IP68 T80℃
· Protection class: IP68
· Product standard: Q/006-2016
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC/DC POE power supply mode
· The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment

contact us
  • BL-EX325IF(4/6/8/12mm) 2 million fixed focus infrared 50m high temperature air-cooled camera

maximum image size

1920 × 1080

Substream frame rate and resolution

50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

digital noise reduction

3D digital noise reduction

Minimum illumination

Color: 0.01 Lux @ (F1.2, AGC ON)

frame rate

Main stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

lens

4mm, horizontal field of view: 86°(6mm(54.5°), 8mm(43°), 12mm(26.3°) optional)

sensor type

1/2.7" Progressive Scan CMOS

Wide dynamic range

digital wide dynamic

shutter

1/3 s ~ 1/100,000 s

Day and night switching mode

ICR infrared filter type

BLC

Yes, selectable region

video compression standard

Main stream: H.265/ H.264

Substream: H.265/ H.264/ MJPEG

H.265 encoding type

Main Profile

H.264 encoding type

BaseLine Profile/ Main Profile/ High Profile

Video compression bit rate

32 Kbps ~ 8 Mbps

supporting agreement

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,

UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

Interface Protocol

ONVIF(PROFILES), ISAPI

General function

Heartbeat, mirroring, password protection, video masking, watermarking technology

Alarm function

Motion detection, occlusion alarm, illegal login

Communication Interface

1 RJ45 10 M/100 M adaptive Ethernet port

Protection class

IP68

power supply

Internal DC12 V ± 25% / PoE(802.3af), external AC127V

Operating temperature and humidity

-30℃ ~ 60℃, humidity less than 95% (non-condensing)

Power consumption

Non-PoE: 5 W Max

PoE: 6.5W Max

weight

Weight with package: 5kg

farthest infrared distance

50 m

Image correlation

• The highest resolution can reach 1920 × 1080 @ 25 fps, and real-time image can be output.
• Stream smoothing settings, adapt to different requirements for image quality and fluency in different scenarios.
• Support GBK font library, support more Chinese characters and uncommon characters superimposed.
• Support OSD color selection.
• Support to adjust Saturation, Brightness, Contrast, Sharpness, AGC, White Balance.
• Support 3D digital noise reduction and digital wide dynamic.

Infrared function

• High-efficiency array infrared lamps with long service life and a maximum illumination distance of 50 m.
• Support Smart IR to prevent infrared overexposure at night.
• ICR infrared filter type automatic switching, to achieve real day and night monitoring.
• Support independent configuration of two sets of parameters day and night.

System functions

• Support PoE power supply function (optional).
• Compliant with IP67 dustproof and waterproof design, high reliability
• Support low bit rate, low latency, ROI enhanced coding.
• Fully functional: heartbeat, mirroring, etc.
• Support dual stream, support mobile phone monitoring.
• Support EZVIZ cloud platform access.
• Support Email, FTP, NTP server test.

Security service

• Supports security authentication such as HTTPS, and supports the creation of certificates.
• A password must be set when the initial device is turned on to ensure password security.
• Support user login locking mechanism, and password complexity prompt.

Accessories:

Explosion-proof camera wall mount BL-EX30LA

Explosion-proof camera universal joint BL-EX10ZA

Explosion-proof camera junction box BL-EX200A

Air-cooled explosion-proof camera hose BL-EX100J


Ordering Information:

Aluminum alloy heat dissipation material 4 million air-cooled explosion-proof camera BL-EX346IF
