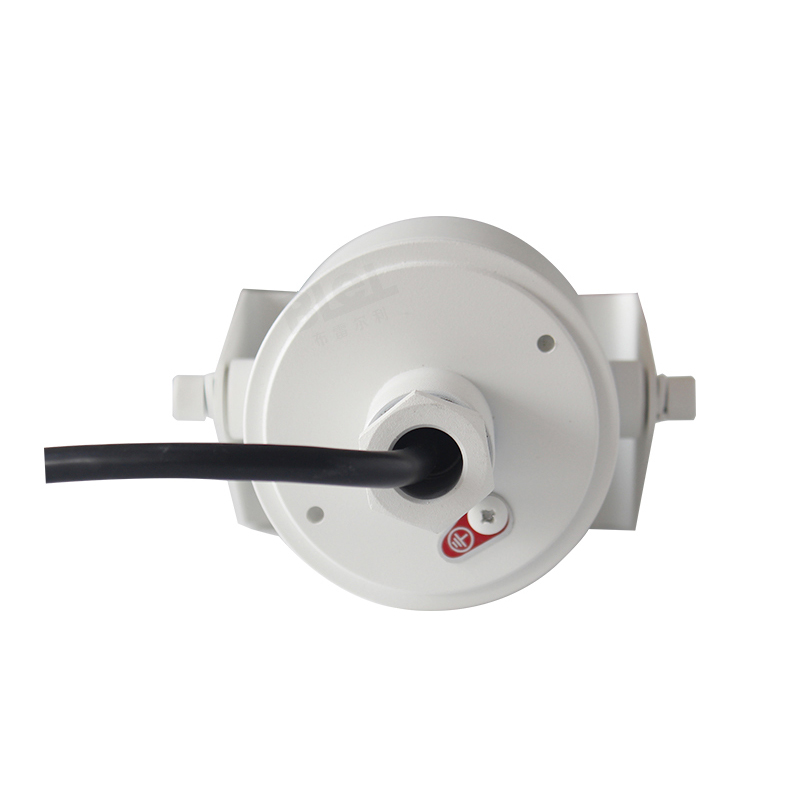

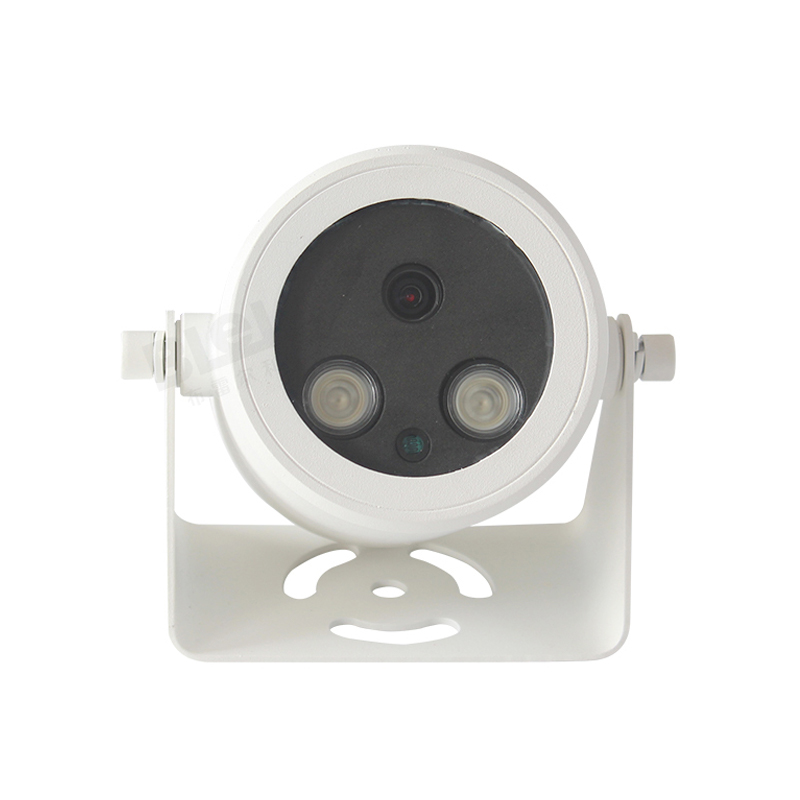

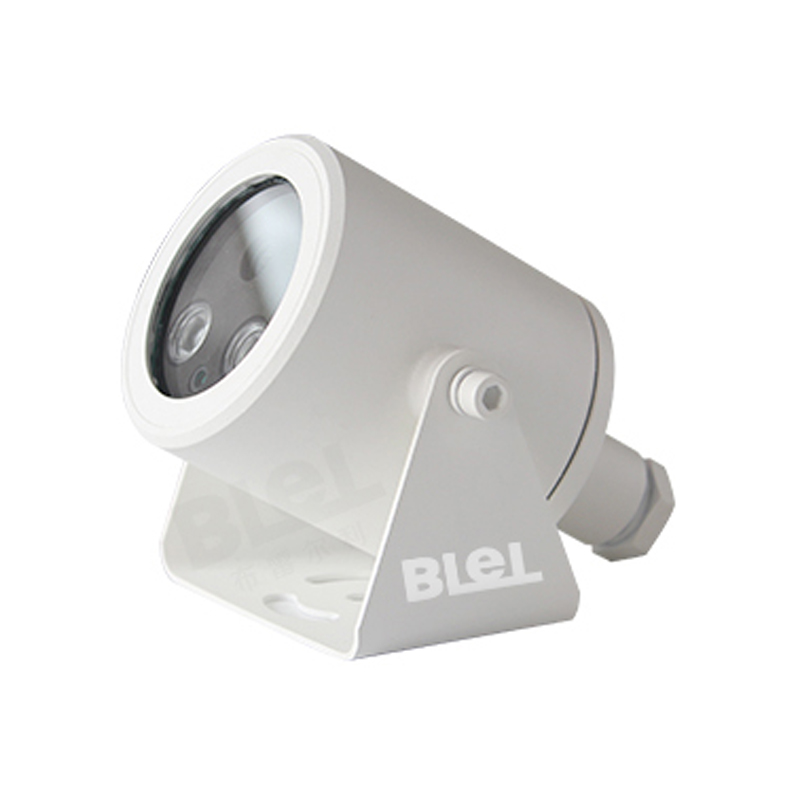

Home / Product / Anti-corrosion camera / Anti-corrosion bolt / 2 million / BL-EX325(P)MWF(2.8/4/6mm) 2 million infrared 30m fixed focus anti-corrosion explosion-proof network camera
Features:
· Explosion-proof mark: Exd IIC T6 Gb /ExtD A21 IP68 T80 °C
· Production license number: XK06-014-02763
· 3C National Compulsory Product Certification Number: 2020312309000001
· Protection class: IP68
· Product Standards: Q/006-2016
· The shell adopts 304/316L material, while adding surface coating anti-corrosion design to avoid acid and neutral salt spray corrosion
· WF2 Anti-corrosion standard
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC/DC or Poe Power supply
The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment
Application scenarios
The characteristics of anti-corrosion equipment make it widely used in : Chemical plants, ports, coastal roads, islands, coastal cities, ships, maritime islands and other corrosive environments.
maximum image size | 1920 × 1080 |
Substream frame rate and resolution | 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) |
digital noise reduction | 3D digital noise reduction |
Minimum illumination | color : 0.01 Lux @ (F1.2, AGC ON) |
frame rate | main stream : 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
lens | 4mm, Horizontal field of view : 86°(6mm(54.5°), 8mm(43°), 12mm(26.3°) optional ) |
sensor type | 1/2.7" Progressive Scan CMOS |
Wide dynamic range | digital wide dynamic |
shutter | 1/3 s ~ 1/100,000 s |
Day and night switching mode | ICR Infrared filter type |
BLC | Yes, selectable region |
video compression standard | main stream : H.265/ H.264 |
substream : H.265/ H.264/ MJPEG | |
H.265 encoding type | Main Profile |
H.264 encoding type | BaseLine Profile/ Main Profile/ High Profile |
Video compression bit rate | 32 Kbps ~ 8 Mbps |
supporting agreement | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, |
UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
Interface Protocol | ONVIF(PROFILES), ISAPI |
General function | heartbeat , mirror , password protection , video cover , watermarking technology |
Alarm function | Motion Detection , Occlusion alarm , Illegal login |
Communication Interface | 1 indivual RJ45 10M/100M Adaptive Ethernet port |
Protection class | IP67 |
power supply | DC12 V ± 25% / PoE(802.3af) |
Operating temperature and humidity | -30℃ ~ 60℃, Humidity is less than 95%( no condensation ) |
Power consumption | BL-EX325MWF : No PoE: 5W Max |
BL-EX325PMWF : PoE: 6.5W Max | |
weight | 4kg |
farthest infrared distance | 50m |
Image correlation
• Highest resolution up to 1920 × 1080 @ 25fps , and can output real-time images.
• Stream smoothing settings, adapt to different requirements for image quality and fluency in different scenarios.
• support GBK Font library, support more Chinese characters and uncommon characters superimposed.
• support OSD Color optional.
• Support to adjust saturation, brightness, contrast, sharpness, AGC , white balance.
• support 3D Digital noise reduction, support digital wide dynamic.
Infrared function
• High-efficiency array infrared lamps with long service life and the longest irradiation distance 50m
• support Smart IR , to prevent infrared overexposure at night.
• ICR Infrared filter type automatic switching to achieve real day and night monitoring.
• Support independent configuration of two sets of parameters day and night.
System functions
• support PoE Power supply function (optional).
• meets the IP68 Grade dustproof and waterproof design, high reliability
• Support low bit rate, low latency, ROI Region-of-interest enhancement coding.
• Fully functional: heartbeat, mirroring, etc.
• Support dual stream, support mobile phone monitoring.
• Support EZVIZ cloud platform access.
• support Email , FTP , NTP Server test.
Security service
• support HTTPS and other security authentication, support the creation of certificates.
• A password must be set when the initial device is turned on to ensure password security.
• Support user login locking mechanism, and password complexity prompt.
Accessories:
Anti-corrosion junction box BL-EXC200AWF
Explosion-proof camera hose BL-EX100P
Ordering Information:
304 Stainless steel 200 10,000 fixed focus infrared anti-corrosion explosion-proof network camera BL-EX325MWF
304 Stainless steel 200 Ten thousand Poe Fixed focus infrared anti-corrosion explosion-proof network camera BL-EX325PMWF
316L Stainless steel 200 10,000 fixed focus infrared anti-corrosion explosion-proof network camera BL-EX325MWF/316L
316L Stainless steel 200 Ten thousand Poe Fixed focus infrared anti-corrosion explosion-proof network camera BL-EX325PMWF/316L
