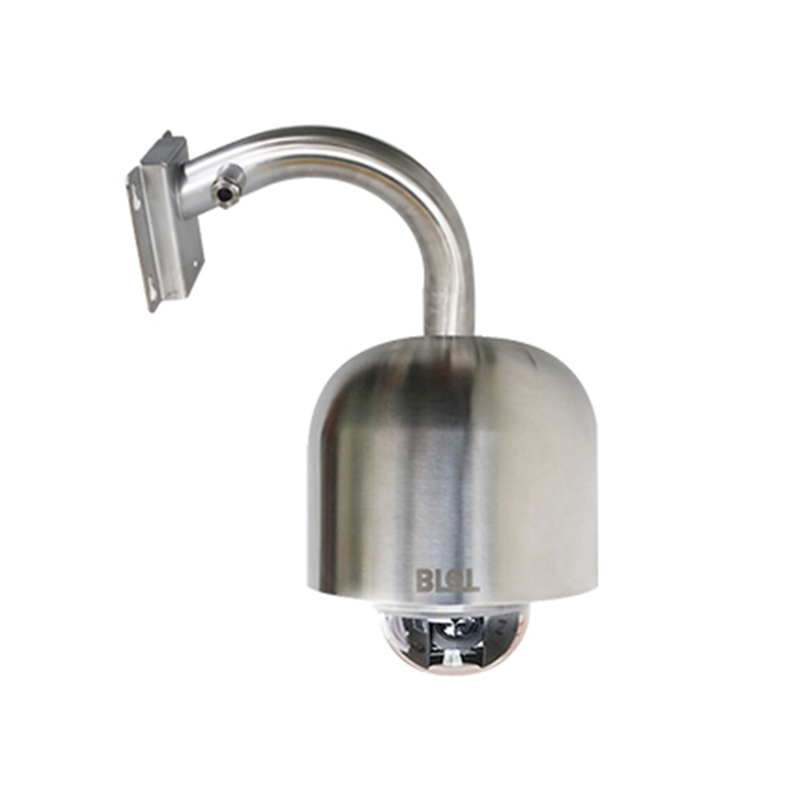

iBL-FB6223IW-DE 2 million 6 inch 23 times super starlight infrared explosion-proof integrated ball machine

model

iBL-FB6223IW-DE

Image Sensor

1/2.8"progressive scan CMOS

Minimum illumination

Color: 0.005Lux @ (F1.6, AGC ON); B&W: 0.001Lux @ (F1.6, AGC ON); 0 Lux with IR

Resolution and Frame Rate

Main stream 50Hz: 25fps (1920×1080, 1280×960, 1280×720), 50fps (1920×1080, 1280×960, 1280×720);

60Hz: 30fps (1920×1080, 1280×960, 1280×720), 60fps (1920×1080, 1280×960, 1280×720)

Sub-stream 50Hz: 25fps (704×576, 640×480, 352×288); 60Hz: 30fps (704×480, 640×480, 352×240)

The third stream: 50Hz: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288);

60Hz: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480, 352×240)

video compression

H.265/H.264/MJPEG

Infrared distance

50-80 meters

audio compression

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM

white balance

Auto/Manual/Auto Tracking White Balance/Outdoor/Indoor/Fluorescent White Balance/Sodium White Balance

Gain control

automatic / manual

signal to noise ratio

≥55dB

3D digital noise reduction

support

BLC

support

Area Exposure/Focus

support

electronic shutter

1/1-1/30,000s

Day and night mode

Automatic ICR color to black

digital zoom

16 times

privacy mask

Up to 24 polygonal areas; supports a variety of colors to choose from

focus mode

automatic/semi-automatic/manual

focal length

4.8-110mm, 23x optical zoom

Zoom speed

About 3.3 seconds (optical, wide-angle-telephoto)

Horizontal viewing angle

57.6-2.7 degrees (Wide-Telephoto)

close-up

10-1500mm (wide-angle-telephoto)

Aperture number

F1.6-F3.5

Smart detection

Face detection, area intrusion detection, out-of-bounds detection, entering area detection, leaving area detection, loitering detection, people gathering detection, fast motion detection, parking detection, item left detection, item taking Detection, audio anomaly detection, motion detection, video occlusion detection

Smart Tracking

Manual tracking, panoramic tracking, event tracking; support multi-scene cruise tracking

Smart Recording

Resume upload after disconnection, intelligent post-retrieval

Smart image enhancement

120dB ultra-wide dynamic, through fog, strong light suppression, electronic image stabilization, Smart IR

Smart coding

smart265, smart264, low bit rate, ROI, SVC

Device Anomaly Detection

Network cable disconnection, IP address conflict, memory full, memory error, illegal access

Horizontal and vertical range

Horizontal 360°; Vertical -5°-90°

horizontal speed

Horizontal keying speed: 0.1°-300°/s, speed can be set; horizontal preset speed: 350°/s

vertical speed

Vertical keying speed: 0.1°-160°/s, speed can be set; vertical preset speed: 200°/s

3D positioning

support

Scale zoom

support

Number of preset points

300

cruise scan

8 strips, each can add 32 preset points

pattern scan

4, the recording time of each path is more than 10 minutes

Power-off memory

support

watch function

Preset point/pattern scan/cruise scan/auto scan/vertical scan/random scan/frame scan/panoramic scan

Azimuth information display

switch

Preset video freeze

support

timed task

Preset point/pattern scan/cruise scan/auto scan/vertical scan/random scan/frame scan/panorama scan/ball camera restart/ball camera verification/auxiliary output

Network protocol

IPv4/IPv6,HTTP,HTTPS,802.1x,QoS,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,DHCP,PPPoE,Bonjour

application programming interface

Supports open API for software integration, supports standard protocols (ONVIF, ISAPI), supports Hikvision SDK and third-party management platform access, supports GB/T28181 protocol, supports E-home protocol, supports EZVIZ cloud access

browser

Support IE8, Chrome31-44, Firefox30-51, Safari8.0 browsers

Number of simultaneous preview videos

Up to 20 routes

User rights

Up to 32 users, divided into 3 levels: administrator, operator and general user

safe mode

Authorized username and password, and MAC address binding; HTTPS encryption; IEEE 802.1x network access control, IP address filtering

Network Interface

RJ45 network port, adaptive 10M/100M network data, support POE (802.3at) power supply

Power interface

DC12V

Alarm input/output

2-channel alarm input; 2-channel alarm output; support setting alarm linkage preset point/cruise scan/pattern scan/SD card recording/alarm output/mail/upload center/upload FTP

Audio input/output

1 channel audio input, audio peak: 2-2.4V[p-p], input impedance: 1KΩ±10%; 1 channel audio output, line level, impedance: 600Ω

SD card interface

Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (maximum support 256G)

Power consumption

18W max (infrared lamp 5.5W max)

Operating temperature and humidity

-30℃-65℃; humidity less than 90%

Protection class

IP68; 4000V lightning protection, anti-surge, anti-surge, in line with GB/T17626.5 four standards

Installation method

Various installation methods are available, choose according to the application environment

size

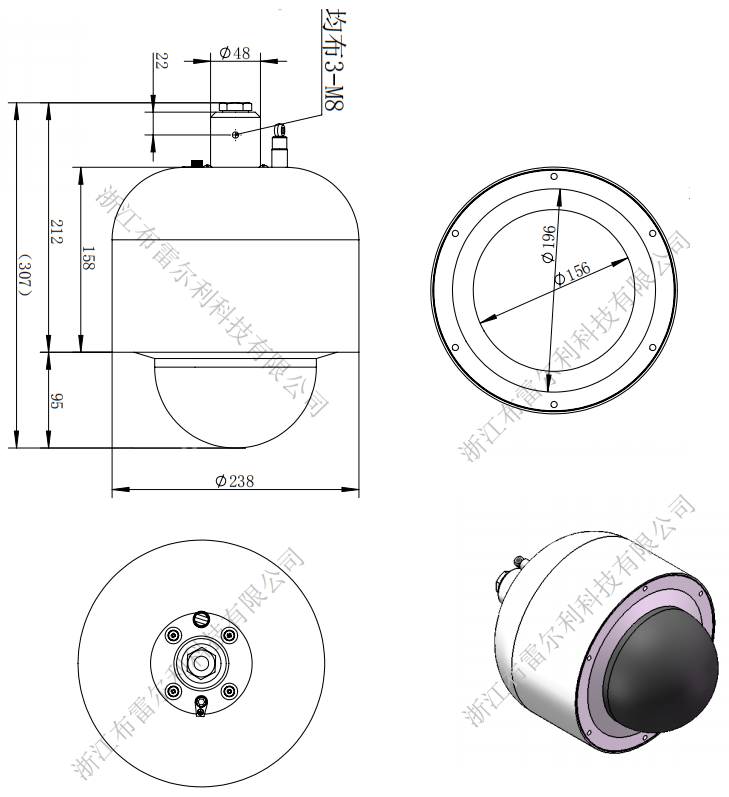

See drawing

weight

12Kg
