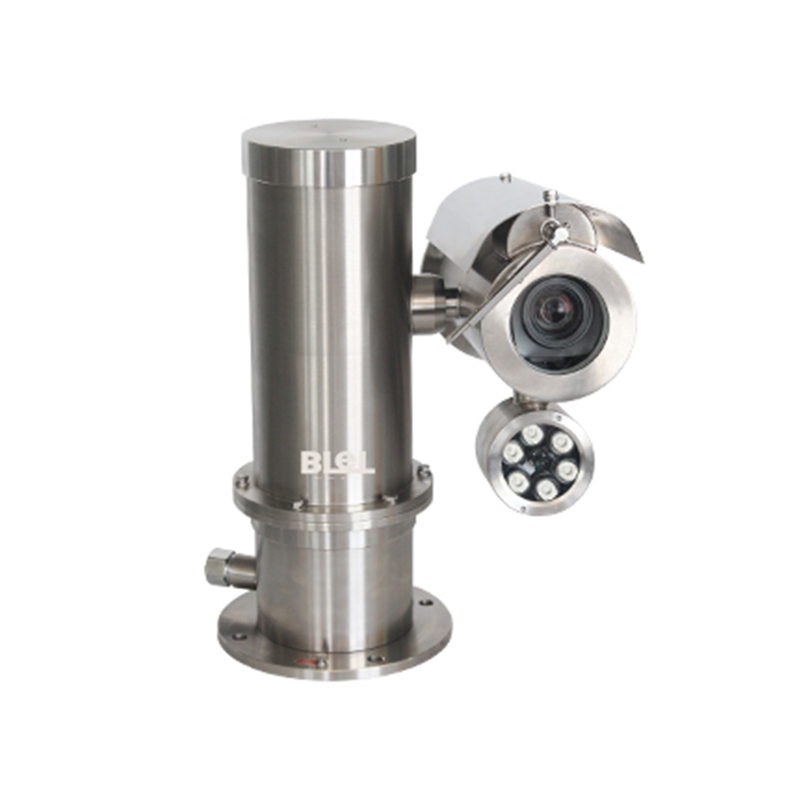

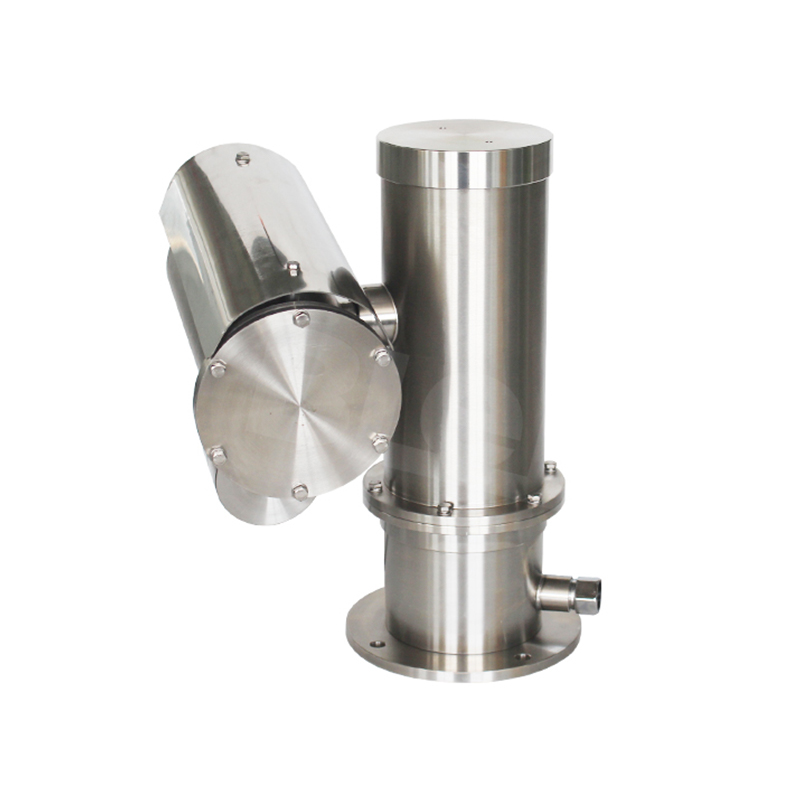

Home / Product / Special product / Explosion-proof gimbal / 2MP / iBL-FB8230IAW 2 million 30 times 100 meters infrared single cabin wiper explosion-proof PTZ camera
Application scenarios:
The equipment has obtained the highest certification of Class II explosion-proof level and the highest certification of temperature (T) level. It is suitable for Zone 0, Zone 1, Zone 2 with IIA, IIB, IIC environment, and explosive mixtures formed by explosive and flammable gases and air in groups T1~T6. Zone 20, Zone 21 and Zone 22 where explosive and flammable dust is mixed with air, except for coal mine methane gas, other explosive gas and dust environments. Such as: refining, oil production, gas production, chemical industry, fireworks production, food processing and storage, gas stations and other environments.
Features:
· Explosion proof mark: Exd IIC T6 Gb /ExtD A21 IP68 T80℃
· Protection class: IP68
· Product standard: Q/006-2016
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC/DC POE power supply mode
The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment
The wiper function adopts automobile wiper blades, which has good weather resistance and is easy to replace.
model | iBL-FB8230IAW |
name | 30 times 2 million 1/2.8" CMOS ICR day and night network HD all-in-one machine |
Horizontal field of view | 65.1-2.34 degrees (Wide-Telephoto) |
sensor type | 1/2.8" Progressive Scan CMOS |
signal system | PAL/NTSC |
shutter | 1/1 second ~ 1/30,000 second |
Day and night switching mode | ICR infrared filter type |
signal to noise ratio | Greater than 52dB |
Effective Pixels | 2 million effective pixels |
video output | network coding output |
Resolution | 50HZ: 25fps(1920X1080) 60HZ: 30fps(1920X1080) |
| 50HZ: 25fps(1280X960) 60HZ: 30fps(1280X960) |
| 50HZ: 25fps(1280X720) 60HZ: 30fps(1280X720) |
Minimum illumination | Color: 0.05Lux @ (F1.6, AGCON) |
| Black and white: 0.01Lux @ (F1.6, AGCON) |
white balance | Auto1/Auto2/Indoor/Outdoor/Manual/Sodium Lamp/Fluorescent Lamp |
3D noise reduction | support |
focal length | 4.5-135mm, 30x optical zoom |
aperture | F1.6-F4.4 |
Horizontal viewing angle | 65.1-2.34 degrees (Wide-Telephoto) |
close-up | 10-1500mm (wide-angle-telephoto) |
Zoom speed | About 4 seconds (optical, wide-angle-telephoto) |
Zoom speed | About 4.1 seconds (optical, wide-angle-telephoto) |
Day and night switching mode | ICR filter |
exposure mode | Auto Exposure/Aperture Priority/Shutter Priority/Manual Exposure |
focus mode | Auto focus/One-shot focus/Manual focus |
BLC | support |
RS-485 | Communication Protocol/Baud Rate/Address |
Dead pixel detection | support |
exposure mode | Auto Exposure/Manual Exposure/Aperture Priority/Shutter Priority |
video compression standard | H.265/H.264 |
Compressed output bit rate | 32kbps-12Mbps |
audio compression standard | G.722.1, G.711-a law, G.711-u law, MP2L2, G.726, AAC, PCM |
maximum image size | Maximum resolution up to 1920X1080 |
Image settings | Saturation, brightness, contrast can be adjusted by client or IE browser |
Storage function | Support micro SD |
Smart alarm | Motion detection, occlusion alarm, memory full, memory error, audio anomaly detection, out-of-bounds detection, regional intrusion detection |
supporting agreement | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP, optional) |
General function | Dual stream, heartbeat, password protection |
Image quality adjustment | Brightness, contrast, sharpness, saturation can be adjusted |
white balance | Auto1/Auto2/Indoor/Outdoor/Manual/Incandescent/Fluorescent |
focus mode | Auto focus/One-shot focus/Manual focus |
exposure mode | Auto Exposure/Aperture Priority/Shutter Priority/Manual Exposure |
Day and night mode | Auto/color/black and white/timing/alarm input trigger |
electronic shutter | 1/1 second ~ 1/30,000 second |
wide dynamic | off/on |
BLC | Off/Up/Down/Left/Right/Center |
gain | 16 levels adjustable |
Strong light suppression | off/on |
Dead pixel compensation | support |
digital noise reduction | 3D |
color suppression | 4 levels adjustable |
Other functions | Sharpness, Brightness, Saturation, Contrast, 3D Noise Reduction |
Lens initialization | built-in |
External communication | RS485 interface, Pelco protocol |
External Interface | Ethernet port, RS485, Alarm In/Out, Line In/Out, CVBS, SDHC |
audio input | 1 way |
Audio output | 1 way |
Communication Interface | 1 RJ45 10M/100M adaptive Ethernet port, 1 RS-485 interface |
Alarm input | 1 way |
Alarm Output | 1 way |
Interface Protocol | ONVIF, PSIA, CGI, ISAPI |
Operating temperature and humidity | -10℃~60℃, humidity less than 90% (no condensation) |
power supply | AC24V/AC220V |
Power consumption | 70W |
weight | 15kg |
Image correlation
l Support H.265 efficient compression algorithm, greatly reducing the bit rate
l 2 million pixels progressive scan 1/2.8" CMOS
l The maximum resolution can reach 1920×1080
l 30x optical zoom, focal length is 4.5-135mm
l Minimum illumination: color 0.05lux@F1.6
l Support ICR infrared filter type automatic switching
l Fast and accurate focusing
l Wide dynamic 120db
l Support 3D-DNR, low bit rate
l Full-featured: heartbeat, PTZ control, alarm, audio, user management
Accessories:
Explosion-proof camera junction box BL-EXC200A
Explosion-proof camera hose BL-EX100P
Ordering Information:
304 stainless steel 2 million 30 times wiper explosion-proof PTZ camera iBL-FB8230IAW
316L stainless steel 2 million 30 times wiper explosion-proof PTZ camera iBL-FB8230IAW/316L
