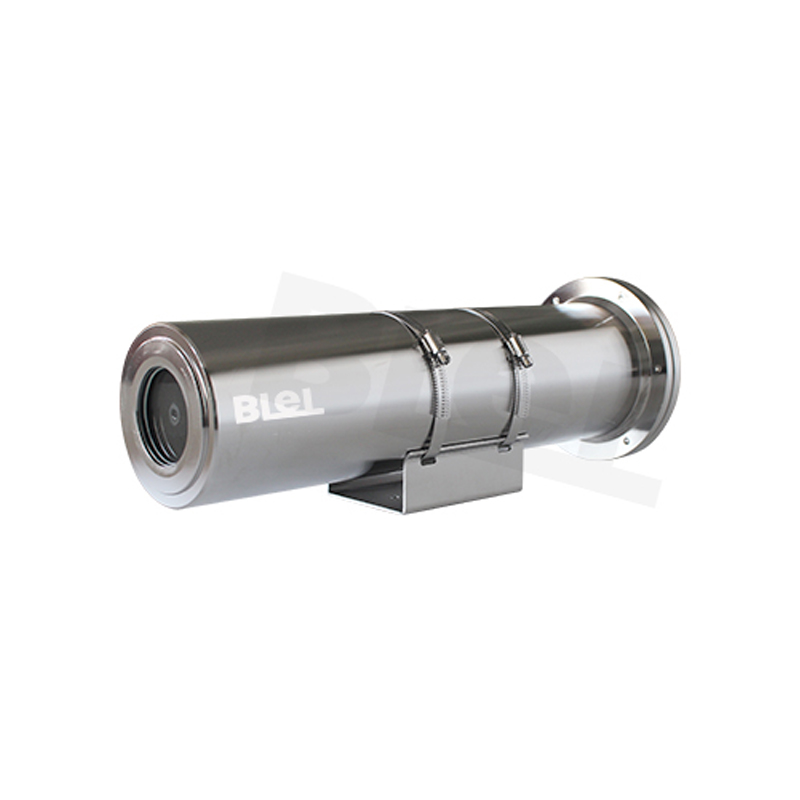

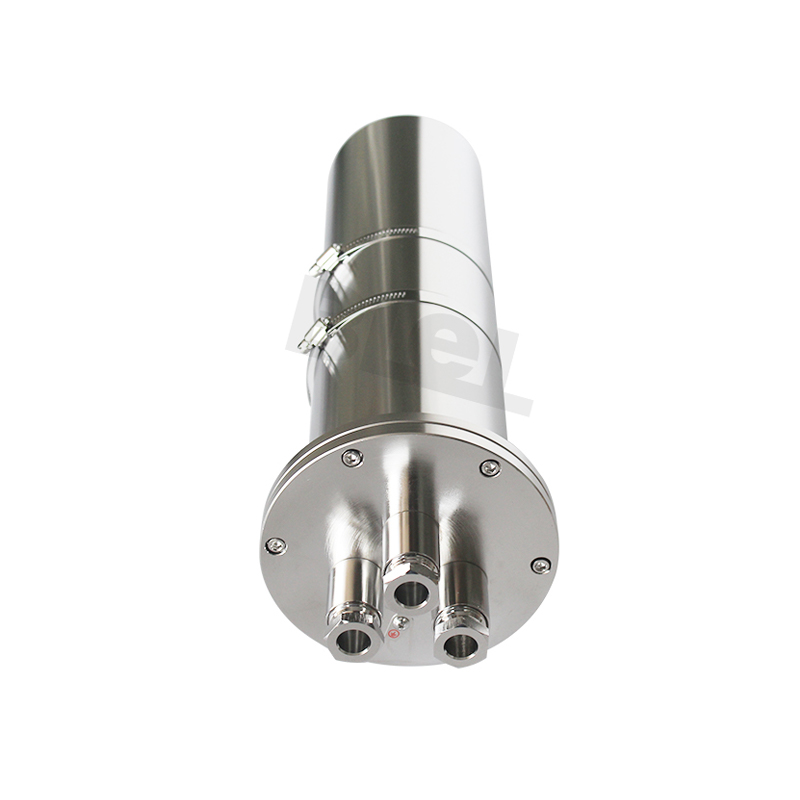

Home / Product / Special product / Mine camera / 2MP / KBA127-B5-I5(4/6/8/12mm) 2 million pixel 50m infrared fixed focus network mine explosion-proof camera
Application scenarios:
The equipment has obtained the highest certification of Class II explosion-proof level and the highest certification of temperature (T) level. It is suitable for Zone 0, Zone 1, Zone 2 with IIA, IIB, IIC environment, and explosive mixtures formed by explosive and flammable gases and air in groups T1~T6. Zone 20, Zone 21, Zone 22 where explosive and flammable dust is mixed with air, such as coal mine methane gas, explosive gas, dust environment. Such as: refining, oil production, gas production, chemical industry, fireworks production, food processing and storage, gas stations and other environments.
Features:
· Product standard: GB3836-2010, MT 209-1990, Q/BL927001-2018
· Wide voltage design supports user-customized AC/DC POE power supply mode
· The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment
maximum image size | 1920 × 1080 |
Substream frame rate and resolution | 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) |
digital noise reduction | 3D digital noise reduction |
Minimum illumination | Color: 0.01 Lux @ (F1.2, AGC ON) |
frame rate | Main stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
lens | 4mm, horizontal field of view: 86°(6mm(54.5°), 8mm(43°), 12mm(26.3°) optional) |
sensor type | 1/2.7" Progressive Scan CMOS |
Wide dynamic range | digital wide dynamic |
shutter | 1/3 s ~ 1/100,000 s |
Day and night switching mode | ICR infrared filter type |
BLC | Yes, selectable region |
video compression standard | Main stream: H.265/ H.264 |
| Substream: H.265/ H.264/ MJPEG |
H.265 encoding type | Main Profile |
H.264 encoding type | BaseLine Profile/ Main Profile/ High Profile |
Video compression bit rate | 32 Kbps ~ 8 Mbps |
supporting agreement | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, |
| UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
Interface Protocol | ONVIF(PROFILES), ISAPI |
General function | Heartbeat, mirroring, password protection, video masking, watermarking technology |
Alarm function | Motion detection, occlusion alarm, illegal login |
Communication Interface | 1 RJ45 10 M/100 M adaptive Ethernet port |
Protection class | IP67 |
power supply | Internal DC12 V ± 25% / PoE(802.3af), external AC127V |
Operating temperature and humidity | -30℃ ~ 60℃, humidity less than 95% (non-condensing) |
Power consumption | Non-PoE: 5 W Max |
| PoE: 6.5W Max |
weight | Weight with package: 8kg |
farthest infrared distance | 50 m |
scenes to be used
Places that require high-definition image quality in low-light or no-light environments
• The highest resolution can reach 1920 × 1080 @ 25 fps, and real-time image can be output.
• Stream smoothing settings, adapt to different requirements for image quality and fluency in different scenarios.
• Support GBK font library, support more Chinese characters and uncommon characters superimposed.
• Support OSD color selection.
• Support to adjust Saturation, Brightness, Contrast, Sharpness, AGC, White Balance.
• Support 3D digital noise reduction and digital wide dynamic.
Infrared function
• High-efficiency array infrared lamps with long service life and a maximum illumination distance of 50 m.
• Support Smart IR to prevent infrared overexposure at night.
• ICR infrared filter type automatic switching, to achieve real day and night monitoring.
• Support independent configuration of two sets of parameters day and night.
System functions
• Support PoE power supply function (optional).
• Compliant with IP67 dustproof and waterproof design, high reliability
• Support low bit rate, low latency, ROI enhanced coding.
• Fully functional: heartbeat, mirroring, etc.
• Support dual stream, support mobile phone monitoring.
• Support EZVIZ cloud platform access.
• Support Email, FTP, NTP server test.
Security service
• Supports security authentication such as HTTPS, and supports the creation of certificates.
• A password must be set when the initial device is turned on to ensure password security.
• Support user login locking mechanism, and password complexity prompt.
Accessories:
Mine explosion-proof camera wall mount bracket BL-EX55LA
Mine explosion-proof camera universal joint BL-EX10ZA
Mine explosion-proof camera junction box BL-EXC400A
Ordering Information:
2 million coal mine underground mine explosion-proof camera KBA127-B5-I5
2 million underground 100M fiber optic mine explosion-proof camera KBA127-B5-I5F
