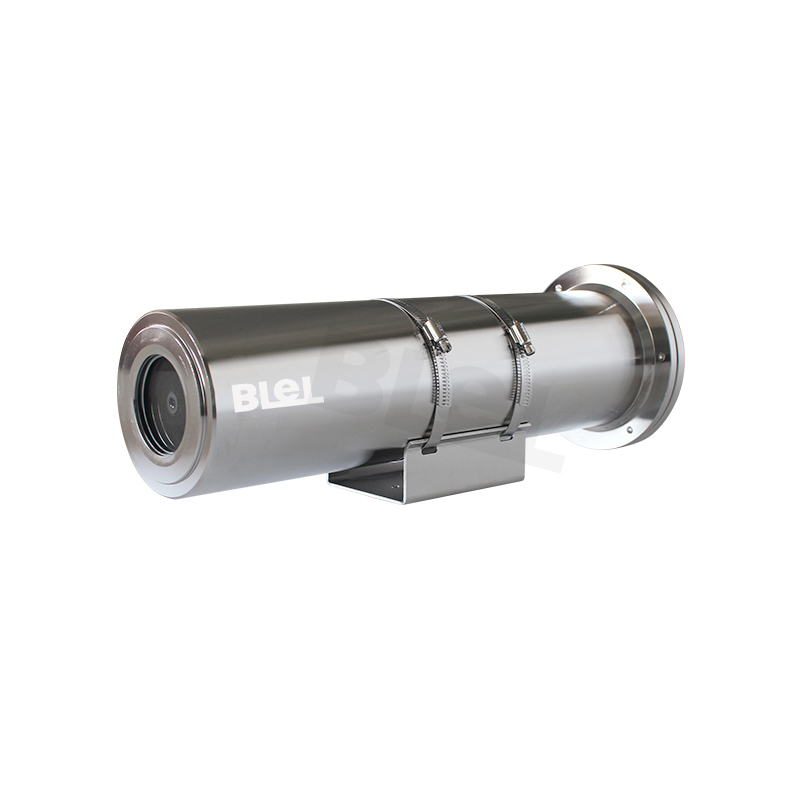

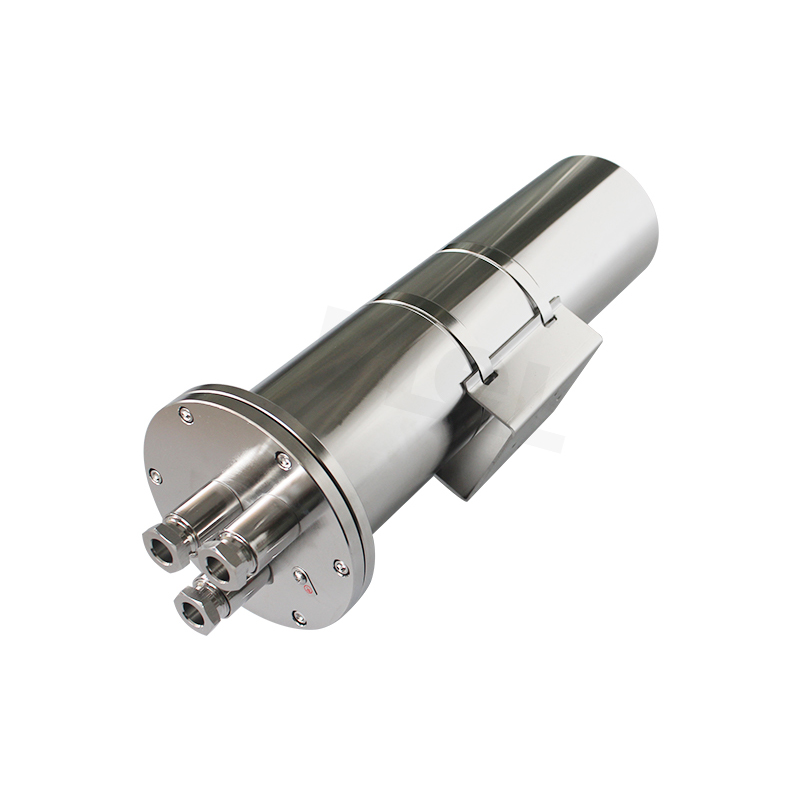

Home / Product / Special product / Mine camera / 2MP / KBA127-B7-I5(4/6/8/12mm) 2 million super starlight 100 meters infrared fixed focus network mine explosion-proof camera
Application scenarios:
fried mixture 0 Area, 1 Area, 2 Areas and places where explosive and flammable dust is mixed with air 20 Area, 21 Area, 22 Explosion Hazardous Locations , Such as coal mine methane gas, explosive gas, dust environment. Such as: refining, oil production, gas production, chemical industry, fireworks production, food processing and storage, gas stations and other environments.
Features:
· Mine safety sign number: MFA190043
· Explosion-proof mark: Ex d I Mb
· Protection class: IP68
· Product Standards: GB3836-2010,MT 209-1990,Q/BL927001-2018
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC and DC POE Power supply
· The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment
maximum image size | 1920 × 1080 |
sensor type | 1/2.7" Progressive Scan CMOS |
Minimum illumination | color : 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light |
lens | 4 mm, Horizontal field of view : 89°[6 mm(56°) optional ] |
frame rate | main stream : 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
substream : 50 Hz: 25 fps (704 × 576, 640 × 480, 320 × 288) | |
Day and night conversion method | daytime , night |
Image settings | corridor mode , brightness , Contrast , saturation, etc. via the client or IE Browser adjustable |
Wide dynamic range | 120dB |
shutter | 1/3 s ~ 1/100,000 s |
image enhancement | BLC , 3D digital noise reduction |
video compression standard | main stream : H.265/ H.264 |
substream : H.265/ H.264/ MJPEG | |
H.265 encoding type | Main Profile |
H.264 encoding type | BaseLine Profile/ Main Profile/ High Profile |
Video compression bit rate | 32 Kbps ~ 8 Mbps |
supporting agreement | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, |
PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
Interface Protocol | ONVIF(PROFILE S), ISAPI, GB28181 |
General function | heartbeat , mirror , password protection , video cover , watermarking technology , IP address filtering |
Anomaly detection | Motion Detection , Occlusion alarm , Illegal login , memory full , memory error |
Smart detection | Out-of-bounds detection , area invasion |
Communication Interface | 1 indivual RJ45 10M/100M Adaptive Ethernet port |
Protection class | IP67 |
power supply | DC12 V ± 25% / PoE(802.3af) |
Operating temperature and humidity | -30℃ ~ 60℃, Humidity is less than 95%( no condensation ) |
Power consumption | No PoE: 5W Max |
PoE: 6.5W Max | |
weight | bare metal : 10kg |
The furthest fill light distance | 50m |
Image correlation
1/2.7" Progressive Scan CMOS
1920 × 1080 @ 25fps
0.0005 Lux @ (F1.0,AGC ON), 0 Lux with light
H.264, Smart264, H.265, Smart265
Smart alarm : Out-of-bounds detection , Area Intrusion Detection
BLC , 3D digital noise reduction
120dB wide dynamic
EZVIZ Cloud Platform Access
Soft light fill light , as far as possible 30 m
IP68
Accessories:
Mine explosion-proof camera wall mount bracket BL-EX55LA
Mine explosion-proof camera universal joint BL-EX10ZA
Mine explosion-proof camera junction box BL-EXC400A
1 Rice flame retardant rubber explosion-proof hose BL-EX100P
Ordering Information:
200 full color infrared 50 Mi coal mine underground mine explosion-proof camera KBA127-B7-I5
200 full color infrared 50 100M optical fiber mine explosion-proof camera in Mi Coal Mine KBA127-B7-I5F
