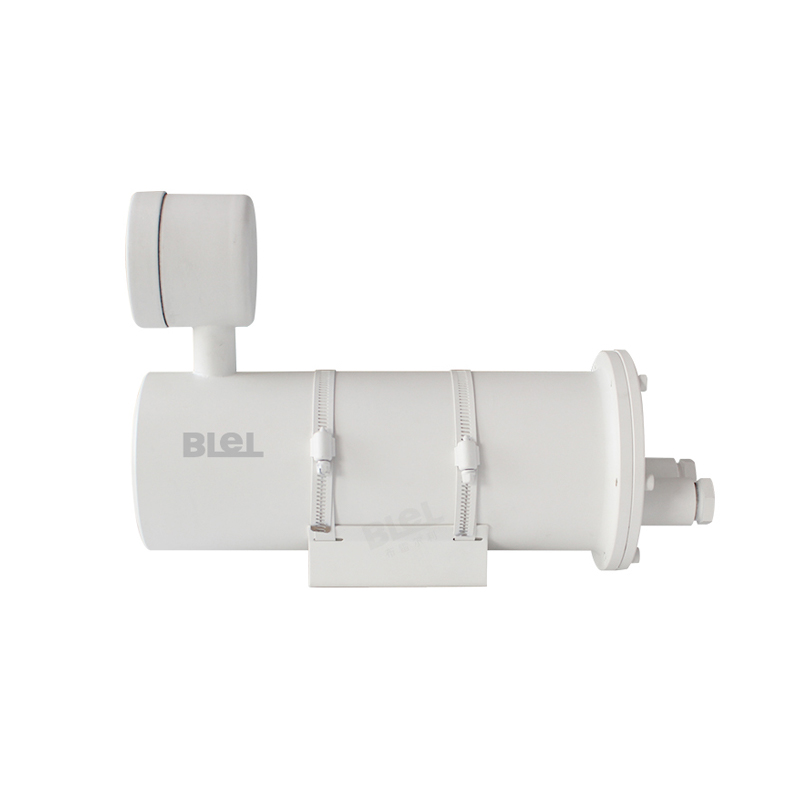

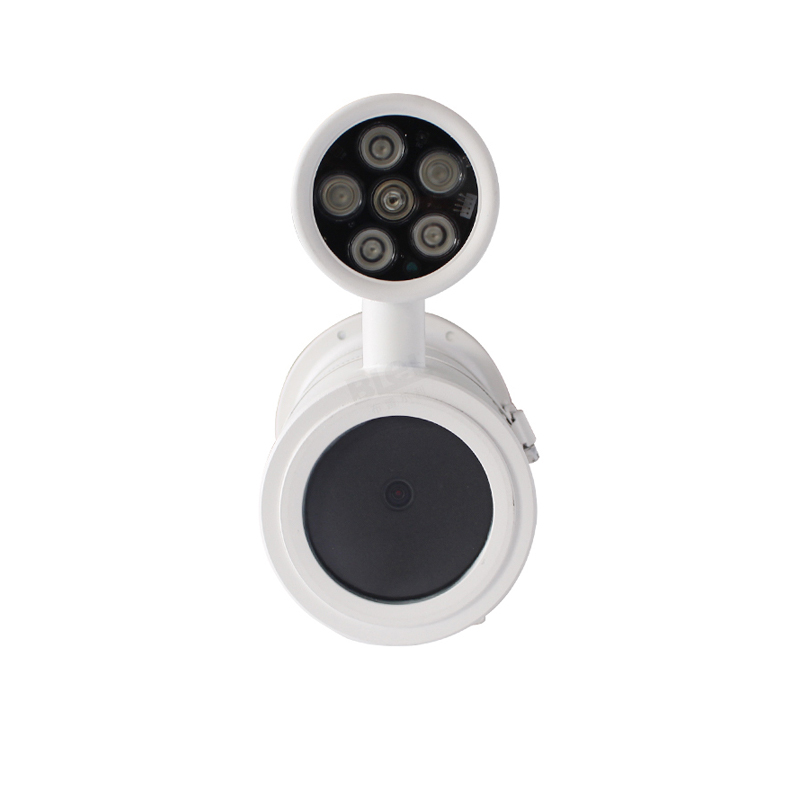

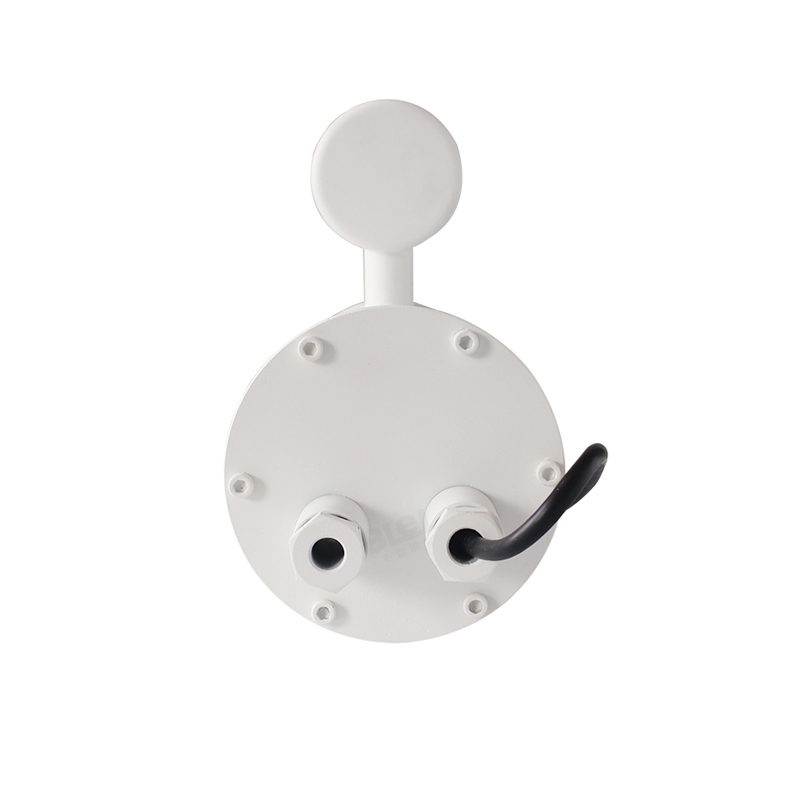

Home / Product / Anti-corrosion camera / Anti-corrosion bolt / 4000000 / BL-EX345(P)WF-I8(4/6/6/12mm) 4 million infrared 100 meters fixed focus anti-corrosion explosion-proof network camera
Features:
· Explosion proof mark: Exd IIC T6 Gb /ExtD A21 IP68 T80℃
· Protection class: IP68
· Product standard: Q/006-2016
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC/DC or Poe power supply mode
The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment
Application scenarios
The characteristics of anti-corrosion equipment make it widely used in corrosive environments such as chemical plants, ports, coastal roads, islands, coastal cities, ships, maritime islands and so on.
model | BL-EX345(P)WF-I8 |
name | 4MP 1/3" CMOS ICR IR Array Barrel Network Camera |
sensor type | 1/3" Progressive Scan CMOS |
shutter | 1/3 second to 1/100,000 second |
Day and night switching mode | ICR infrared filter type |
Wide dynamic range | 120dB |
digital noise reduction | 3D digital noise reduction |
video compression standard | H.265 / H.264 / MJPEG |
H.265 encoding type | Main Profile |
Compressed output bit rate | 32Kbps~8Mbps |
maximum image size | 2560×1440 |
frame rate | 50Hz: 25fps(2560×1440, 2048×1536, 1920×1080, 1280×720) |
Image settings | Corridor Mode, Saturation, Brightness, Contrast, Sharpness can be adjusted by client or browser |
BLC | support, selectable area |
area of interest | ROI supports three streams to set a fixed area respectively |
Storage function | NAS (NFS, SMB/CIFS are supported) |
Interface Protocol | ONVIF,PSIA,CGI,ISAPI,GB28181 |
Smart alarm | Cross-border detection, area intrusion detection, scene change detection, face detection, virtual focus detection |
| Item Left Detection, Item Pickup Detection, Illegal Parking Detection, People Gathering Detection, Loitering Detection, Fast Motion Detection, Entering Area Detection, Leaving Area Detection |
| Motion detection, dynamic analysis, occlusion alarm, network cable disconnection, IP address conflict, memory full, memory error |
supporting agreement | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
General function | Anti-flicker, three-stream, heartbeat, mirroring, password protection, video masking, watermark |
Communication Interface | 1 RJ45 10M / 100M adaptive Ethernet port |
Operating temperature and humidity | -30℃~60℃, humidity less than 95% (no condensation) |
power supply | DC12V±25% / PoE(802.3af), the model without P does not support POE |
Power consumption | I3: 6W MAX; I5: 7.5W MAX; I8: 10.5W MAX; |
Protection class | IP68 |
weight | 6kg |
Remark | *A separate DC12V Φ5.5×2.1mm round head power supply is required |
Infrared irradiation distance | 100m |
Features
l The highest resolution can reach 4M (2560×1440 @ 25 fps), and real-time image can be output
l Adopt video compression technology such as ROI, high compression ratio, very flexible processing, ultra-low bit rate
l · Stream smoothing settings, adapt to different requirements for image quality and fluency in different scenarios
l Support GBK font library, support more Chinese characters and uncommon characters superimposed
l Support OSD color selection
l High-efficiency array infrared lamp, long service life, the longest irradiation distance can reach 30 meters (I3)/50 meters (I5)/80 meters (I8)
l Support smart IR to prevent infrared overexposure at night
l Automatic switching of ICR infrared filter to achieve real day and night monitoring
l Support independent configuration of two sets of parameters day and night
l Support PoE power supply (optional)
l Support 3D digital noise reduction, support 120bB ultra-wide dynamic
l Support three streams, support mobile phone monitoring
l Support corridor mode, backlight compensation, automatic electronic shutter function, adapt to different monitoring environments
l Full-featured: heartbeat, mirroring, etc.
l Support a variety of intelligent alarms
l Support intelligent post-retrieval, cooperate with NVR to support secondary retrieval and analysis of events
l Support GB28181 access, support E home platform access, support EZVIZ cloud platform access
l Support NAS, Email, FTP, NTP server testing
l Support HTTPS, SSH and other security authentication, support to create certificates
l Change the password when the initial device is turned on to ensure password security
l Support user login locking mechanism, and password complexity prompt
l Comply with IP68 dustproof and waterproof design, high reliability
Accessories:
Anti-Corrosion Camera Wall Mount Bracket BL-EX40WFLA
Anti-corrosion camera hanging bracket BL-EX40WFIA
Anti-corrosion camera junction box BL-EXC200WF
Explosion-proof camera hose BL-EX100P
Ordering Information:
304 stainless steel 4 million fixed focus infrared anti-corrosion explosion-proof network camera BL-EX345WF-I8
304 stainless steel 4 million Poe fixed focus infrared anti-corrosion explosion-proof network camera BL-EX345PWF-I8
316L stainless steel 4 million fixed focus infrared anti-corrosion explosion-proof network camera BL-EX345WF-I8/316L
316L stainless steel 4 million Poe fixed focus infrared anti-corrosion explosion-proof network camera BL-EX345PWF-I8/316L
