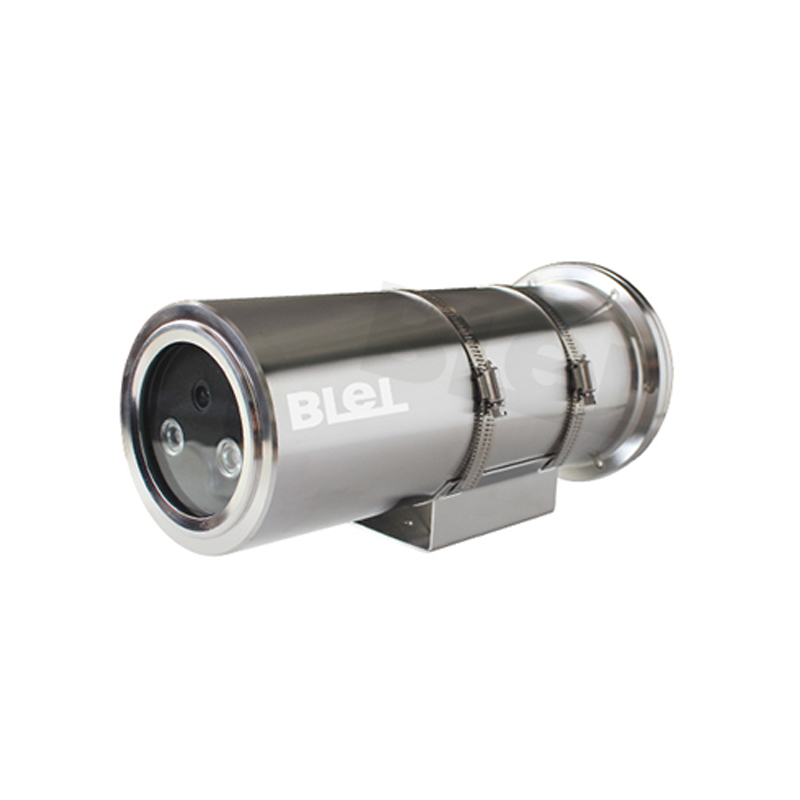

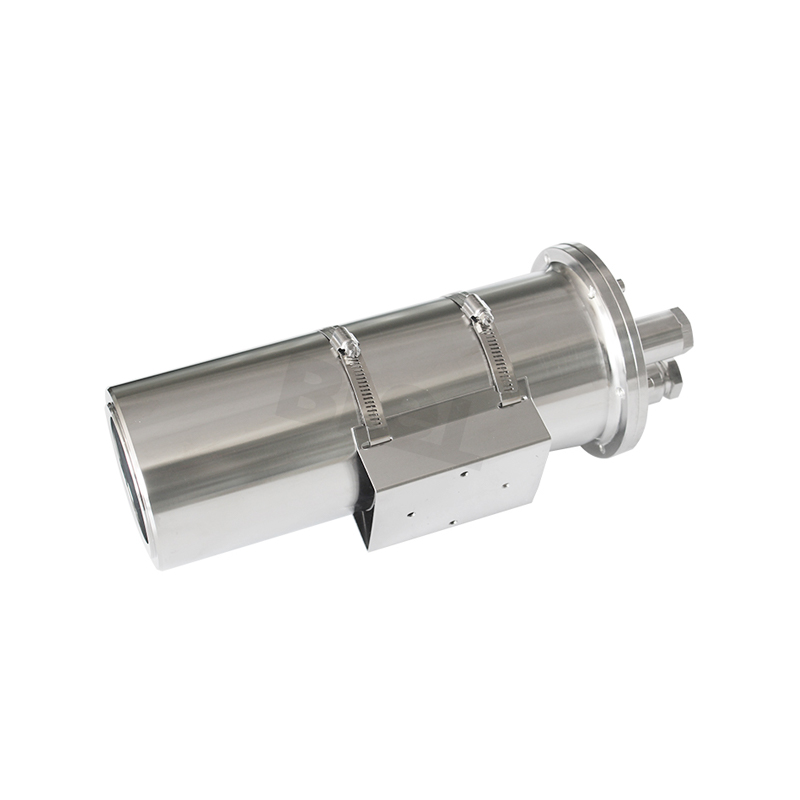

BL-EX340P-I5(4/6/8/12mm) 4 million infrared 50m coaxial analog dual-purpose explosion-proof camera

BL-EX340P-I5(4/6/8/12mm) 4 million infrared 50m coaxial analog dual-purpose explosion-proof camera

Application scenarios:
The equipment has obtained the highest certification of Class II explosion-proof level and the highest certification of temperature (T) level. It is suitable for Zone 0, Zone 1, Zone 2 with IIA, IIB, IIC environment, and explosive mixtures formed by explosive and flammable gases and air in groups T1~T6. Zone 20, Zone 21 and Zone 22 where explosive and flammable dust is mixed with air, except for coal mine methane gas, other explosive gas and dust environments. Such as: refining, oil production, gas production, chemical industry, fireworks production, food processing and storage, gas stations and other environments.

Features:
· Explosion proof mark: Exd IIC T6 Gb /ExtD A21 IP68 T80℃
· Protection class: IP68
· Product standard: Q/006-2016
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC/DC POE power supply mode
· The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment

contact us
  • BL-EX340P-I5(4/6/8/12mm) 4 million infrared 50m coaxial analog dual-purpose explosion-proof camera
  • BL-EX340P-I5(4/6/8/12mm) 4 million infrared 50m coaxial analog dual-purpose explosion-proof camera
  • BL-EX340P-I5(4/6/8/12mm) 4 million infrared 50m coaxial analog dual-purpose explosion-proof camera
  • BL-EX340P-I5(4/6/8/12mm) 4 million infrared 50m coaxial analog dual-purpose explosion-proof camera

model

BL-EX340P-I5

name

4 million coaxial analog dual-purpose infrared fixed focus waterproof explosion-proof camera

sensor type

4.0 Mega Progressive Scan CMOS

signal system

PAL/NTSC

Effective Pixels

2560(horizontal)×1440(vertical)

shutter

1/12.5(1/15) sec to 1/50,000 sec

Minimum illumination

0.01Lux @ (F1.2,AGC ON),0Lux with IR

lens

3.6mm (2.8mm, 6mm, 8mm optional)

lens type

M12

Day and night switching mode

ICR infrared filter type

Synchronously

Intrasync

frame rate

4Mega@25fps

2Mega@25fps

HD video output

1 channel BNC coaxial HD, in line with HDTVI standard

CVBS video output

1 channel 1.1Vp-p Composite Output(75Ω/BNC)

wide dynamic

Greater than 105dB

signal to noise ratio

Greater than 62dB

auto gain

support

Color/B&W

Auto/Color/B&W

white balance

automatic

BLC

support

Noise reduction

2D noise reduction

language

Chinese

Function

mirror

Operating temperature and humidity

-40℃~60℃, humidity less than 90% (no condensation)

power supply

DC12V±25%

Power consumption

4.1W MAX

Protection class

IP68

communication

Coaxial video control

Coaxial output control protocol: HIKVISION-C

Infrared irradiation distance

M/I3 (30 meters), I5 (50 meters), I8 (80 meters)

weight

5kg

Image related:

Adopt 4 million progressive scan CMOS, capture motion image without aliasing

Support coaxial high-definition output, the image is clear and delicate, the resolution is up to 4Mega

Support coaxial high-definition output and standard-definition CVBS analog output (multiplexing one BNC interface), the signal is switched by the control line

Low Light, 0.01Lux @ (F1.2,AGC ON), 0 Lux with IR

Support ICR infrared filter type automatic switching, automatic color to black function, realize day and night monitoring

Support OSD menu control, suitable for user-defined settings

Support 2D digital noise reduction to ensure clean and delicate pictures in various environments

Support SMART IR function, effectively prevent the problem of near infrared overexposure

Comply with IP68 waterproof design, high reliability

Support coaxial video control (HIKVISION-C protocol) function

Accessories:

Explosion-proof camera wall mount BL-EX40LA

Explosion-proof camera hoisting bracket BL-EX40IA

Explosion-proof camera junction box 200X150X100

Explosion-proof camera hose BL-EX100P

Ordering Information:

304 stainless steel 4 million infrared 50 meters coaxial analog dual-purpose explosion-proof camera BL-EX340P-I5

316L stainless steel 4 million infrared 50 meters coaxial analog dual-purpose explosion-proof camera BL-EX340P-I5/316L
