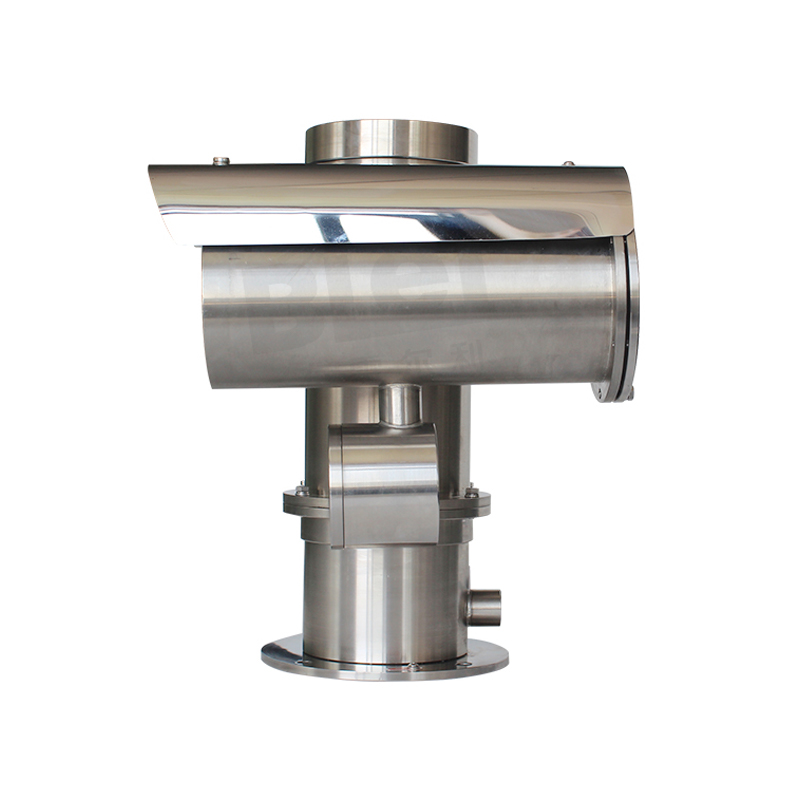

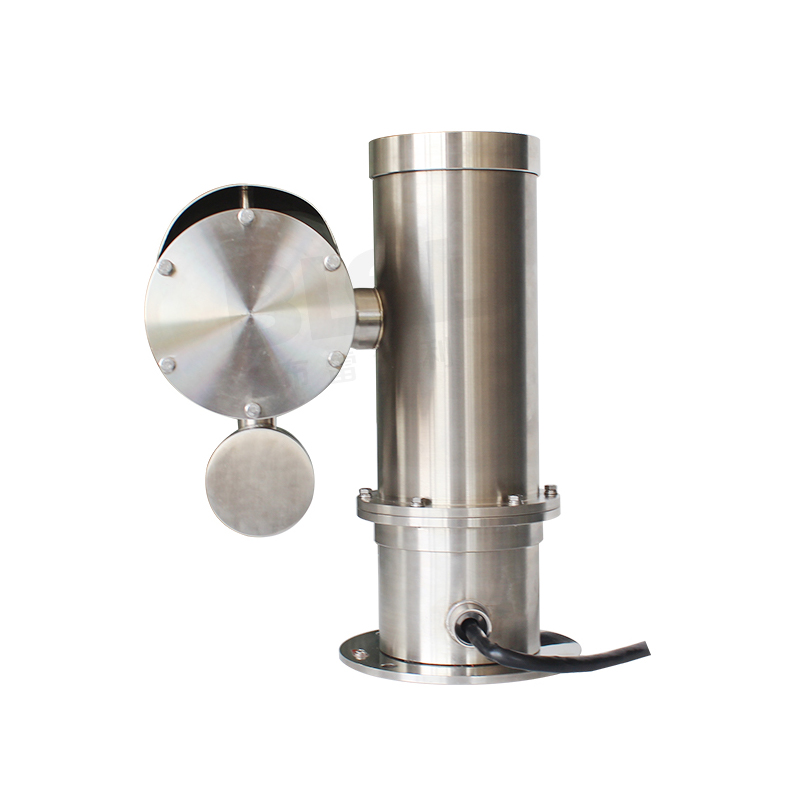

Home / Product / Special product / Explosion-proof gimbal / 4MP / iBL-FB8423IA 4 million 23 times super starlight infrared 100 meters explosion-proof PTZ
Application scenarios:
The equipment has obtained the highest certification of Class II explosion-proof level and the highest certification of temperature (T) level. It is suitable for Zone 0, Zone 1, Zone 2 with IIA, IIB, IIC environment, and explosive mixtures formed by explosive and flammable gases and air in groups T1~T6. Zone 20, Zone 21 and Zone 22 where explosive and flammable dust is mixed with air, except for coal mine methane gas, other explosive gas and dust environments. Such as: refining, oil production, gas production, chemical industry, fireworks production, food processing and storage, gas stations and other environments.
Features:
· Explosion proof mark: Exd IIC T6 Gb /ExtD A21 IP68 T80℃
· Protection class: IP68
· Product standard: Q/006-2016
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC/DC POE power supply mode
The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment
model | iBL-FB8423IA |
Image Sensor | 1/2.8" progressive scan CMOS |
Minimum illumination | Color: 0.05Lux @ (F1.6, AGC ON); B&W: 0.01Lux @ (F1.6, AGC ON); 0 Lux with IR |
Resolution and Frame Rate | main stream |
| 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080P, 1280 × 720P, 1280 × 960), 50 fps (1920 × 1080P, 1280 × 720P, 1280 × 960); |
| 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080P, 1280 × 720P, 1280 × 960), 60 fps (1920 × 1080P, 1280 × 720P, 1280 × 960) |
| substream |
| 50Hz: 25fps (704×576, 640×480, 352×288); |
| 60Hz: 30fps (704×480, 640×480, 352×240) |
| third stream |
| 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) |
| 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
video compression | H.265/H.264/MJPEG |
audio compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM |
Infrared irradiation distance | 50 meters |
white balance | Auto/Manual/Auto Tracking White Balance/Outdoor/Indoor/Fluorescent White Balance/Sodium White Balance |
Gain control | automatic / manual |
signal to noise ratio | Greater than 52dB |
3D digital noise reduction | support |
BLC | support |
Area Exposure/Focus | support |
electronic shutter | 1/1-1/30,000s |
Day and night mode | Automatic ICR color to black |
digital zoom | 16 times |
privacy mask | Up to 24 polygonal areas; supports a variety of colors to choose from |
focus mode | automatic/semi-automatic/manual |
focal length | 4.8-110mm, 23x optical zoom |
Zoom speed | About 3.3 seconds (Wide-Telephoto) |
Horizontal viewing angle | 55-2.7 degrees (Wide-Telephoto) |
close-up | 100-1500mm (wide-angle-telephoto) |
Aperture number | F1.6-F3.5 |
Smart detection | Regional intrusion detection, out-of-bounds detection, audio anomaly detection, motion detection, video occlusion detection |
Smart Recording | Resume upload after disconnection, intelligent post-retrieval |
Smart image enhancement | 120dB ultra-wide dynamic, through fog, strong light suppression, electronic image stabilization, Smart IR |
Smart coding | smart265, smart264, low bit rate, ROI, SVC |
Device Anomaly Detection | Network cable disconnection, IP address conflict, memory full, memory error, illegal access |
Horizontal and vertical range | Horizontal 360° monitoring without dead angle; vertical -40°- 30° |
horizontal speed | Horizontal keying speed: 0.1°-50°/s, speed can be set; horizontal preset speed: 50°/s |
vertical speed | Vertical keying speed: 0.1°-25°/s, speed can be set; vertical preset speed: 25°/s |
3D positioning | support |
Scale zoom | support |
Number of preset points | 300 |
cruise scan | 8 strips, each can add 32 preset points |
pattern scan | 4, the recording time of each path is more than 10 minutes |
Power-off memory | support |
watch function | Preset point/pattern scan/cruise scan/auto scan/vertical scan/random scan/frame scan/panoramic scan |
Azimuth information display | switch |
Preset video freeze | support |
timed task | Preset point/pattern scan/cruise scan/auto scan/vertical scan/random scan/frame scan/panorama scan/ball camera restart/ball camera verification/auxiliary output |
Network protocol | IPv4/IPv6,HTTP,HTTPS,802.1x,QoS,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,DHCP,PPPoE,Bonjour |
application programming interface | Support open API for software integration, support standard protocols (ONVIF, ISAPI), support Hikvision SDK and third-party management platform access, support GB/T28181 protocol, support ISUP, support EZVIZ access |
browser | Support IE8, Chrome31-44, Firefox30-51, Safari8.0 browsers |
Number of simultaneous preview videos | Up to 20 routes |
User rights | Up to 32 users, divided into 3 levels: administrator, operator and general user |
safe mode | Authorized username and password, and MAC address binding; HTTPS encryption; IEEE 802.1x network access control, IP address filtering |
Power interface | DC12V |
Network Interface | RJ45 network port, adaptive 10M/100M network data |
Audio input/output | 1 channel audio input, audio peak: 2-2.4V[p-p], input impedance: 1KΩ±10%; 1 channel audio output, line level, impedance: 600Ω |
Alarm input/output | 1 channel alarm input; 1 channel alarm output; support setting alarm linkage preset point/cruise scan/pattern scan/SD card recording/alarm output/mail/upload center/upload FTP |
CVBS output interface | 1.0V[p-p]/75Ω, PAL or NTSC, BNC connector |
RS485 control interface | Adopt half-duplex mode, support adaptive HIKVISION, PELCO-P and PELCO-D (addable) protocols |
SD card interface | Built-in Micro SD card slot, support Micro SD/Micro SDHC/Micro SDXC card (maximum support 256G) |
Operating temperature and humidity | -30℃-65℃; humidity less than 90% |
Protection class | IP68, 4000V lightning protection, surge protection, surge protection, in line with GB/T17626.5 class 4 standard |
weight | 15kg |
Power consumption | 70W max (infrared 15W max) |
Product Features
l Support up to 2560 × 1440@30fps high-definition image output
l Support H.265 efficient compression algorithm, which can greatly save storage space
l Support 23x optical zoom, 16x digital zoom
l Support 1080p@60fps, 960p@60fps, 720p@60fps high frame rate output
l Adopt high-efficiency infrared array, low power consumption, and the irradiation distance can reach up to 50m
l Supports three-stream technology, and each stream can be independently configured with resolution and frame rate
l Support intelligent detection functions such as regional intrusion detection, out-of-bounds detection, and motion detection
l Support the function of disconnecting and resuming transmission to ensure that the video is not lost, and cooperate with Smart NVR to realize secondary intelligent retrieval, analysis and condensed playback of event video
l Supports wide dynamic range up to 120dB, suitable for backlight environment monitoring
l Support 3D digital noise reduction, strong light suppression, electronic image stabilization, SmartIR
l Support 360° horizontal rotation, vertical -40°-30°
l Support 300 preset positions, 8 cruise scans
l Support 3D positioning function, you can select the target through the mouse to achieve rapid positioning and capture of the target
l Support timing snapshot and event snapshot function
l Support area exposure and area focus functions
l Support timed tasks, one-key watch, one-key cruise functions
l Support 1 channel audio input and 1 channel audio output
l Built-in 1 channel alarm input and 1 channel alarm output, support alarm linkage function
l Support Micro SD/Micro SDHC/Micro SDXC card storage up to 256G
l Support ISUP protocol and EZVIZ service
Lightning protection, surge protection, surge protection, IP68 protection level
Accessories:
Explosion-proof PTZ Wall Mount Bracket BL-EX60LA
Explosion-proof camera junction box BL-EXC200
Explosion-proof camera hose BL-EX100P
Ordering Information:
304 stainless steel 4 million 23 times explosion-proof PTZ camera iBL-FB8423IA
316L stainless steel 4 million 23 times explosion-proof PTZ camera iBL-FB8423IA/316L
