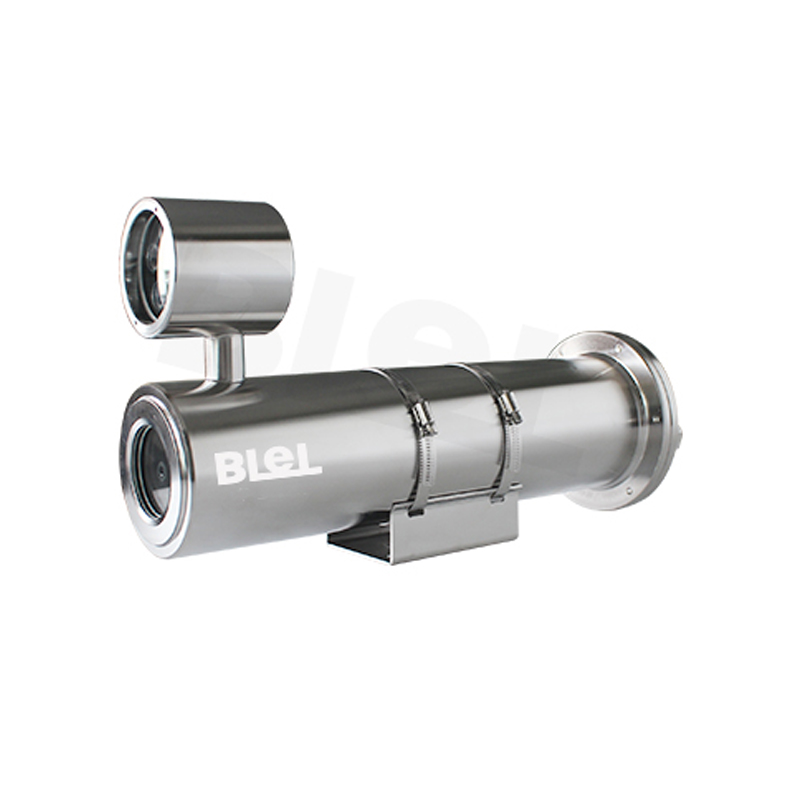

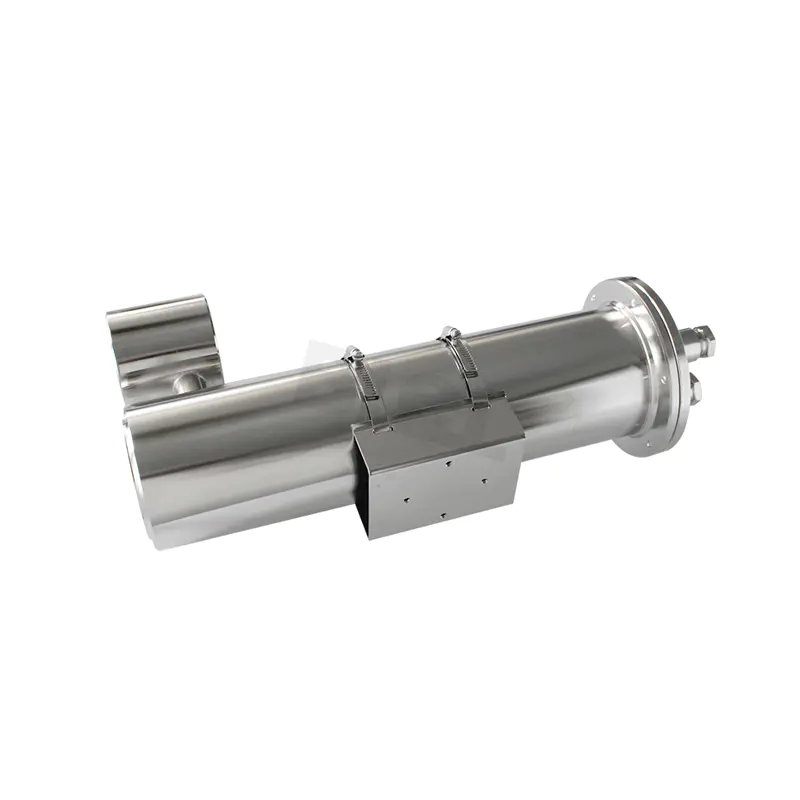

KBA127-D7-I8(4/6/8/12mm) 4 million full color 100 meters infrared fixed focus network mine explosion-proof camera

maximum image size

2560 × 1440

sensor type

1/1.8" Progressive Scan CMOS

Minimum illumination

Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light

lens

4 mm, horizontal field of view: 89° [6 mm (54°) optional]

frame rate

Main stream: 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Substream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)

Day and night conversion method

day, night

Image settings

Corridor mode, brightness, contrast, saturation, etc. can be adjusted through the client or IE browser

Wide dynamic range

120dB

shutter

1/3 s ~ 1/100,000 s

image enhancement

Backlight compensation, 3D digital noise reduction

video compression standard

Main stream: H.265/ H.264

Substream: H.265/ H.264/ MJPEG

H.265 encoding type

Main Profile

H.264 encoding type

BaseLine Profile/ Main Profile/ High Profile

Video compression bit rate

32 Kbps ~ 8 Mbps

supporting agreement

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,

PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

Interface Protocol

ONVIF(PROFILE S, PROFILE G), ISAPI, GB28181, Ehome

General function

Heartbeat, mirroring, password protection, video masking, watermarking technology, IP address filtering

Storage function

NAS (NFS, SMB/CIFS are supported)

Anomaly detection

Motion detection, occlusion alarm, illegal login, memory full, memory error

Smart detection

Border crossing detection, area intrusion

Communication Interface

1 RJ45 10 M/100 M adaptive Ethernet port

Protection class

IP67

power supply

Internal DC12 V ± 25% / PoE(802.3af), external AC127V

Operating temperature and humidity

-30℃ ~ 60℃, humidity less than 95% (non-condensing)

Power consumption

Non-PoE: 6.5 W Max

PoE: 8 W Max

weight

10kg

The furthest fill light distance

100m
