| model | BL-EX4504PIZ |

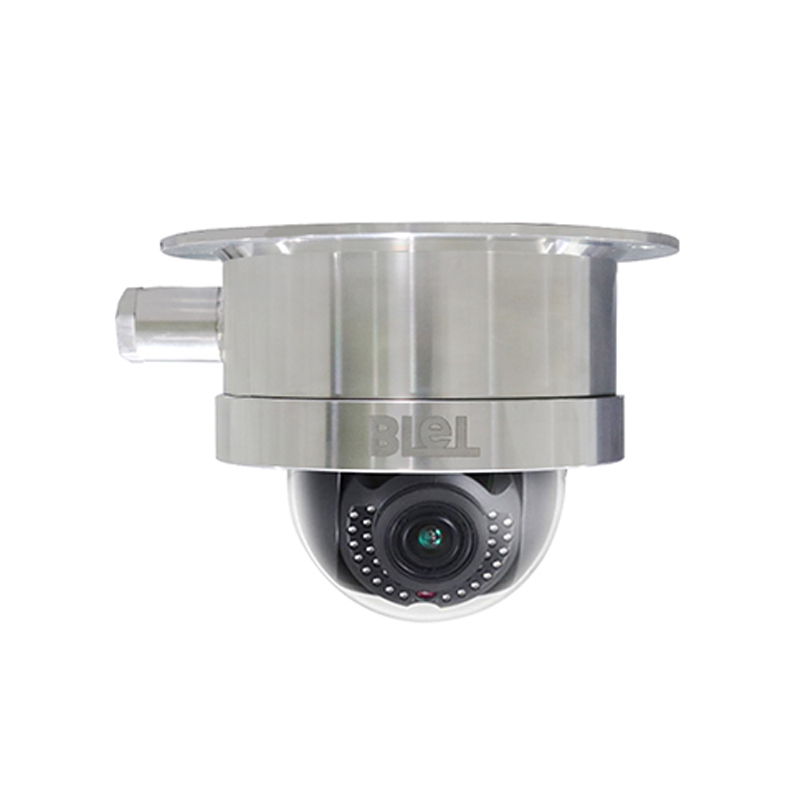

| name | 5MP 1/1.8” CMOS ICR Day and Night Dome IP Camera |
| sensor type | 1/1.8" Progressive Scan CMOS |
| shutter | 1/3 second to 1/100,000 second |
| Auto iris | DC drive |
| Adjust the angle | Horizontal: 0°~355°, Vertical: 0°~75°, Rotate 0°~355° |
| Day and night switching mode | Electronic color to black (-I: ICR infrared filter type) |
| Wide dynamic range | digital wide dynamic |
| digital noise reduction | 3D digital noise reduction |
| slow shutter | support |
| video compression standard | H.265 / H.264 / MJPEG |
| H.265 encoding type | Main Profile |
| Compressed output bit rate | 32Kbps~16Mbps |
| Audio compression bit rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| maximum image size | 2592×1944 |
| frame rate | 50Hz: 25fps (2592 × 1944, 2560 × 1920, 2048 × 1536, 1280 × 960, 1280 × 720), 50fps@1920 × 1080 |
| | 60Hz: 30fps (2592 × 1944, 2560 × 1920, 2048 × 1536, 1280 × 960, 1280 × 720), 60fps@1920 × 1080 |
| Resolution and frame rate of the third stream | Independent of the main stream settings, supports up to: |
| | 50Hz: 25fps (1920 × 1080) |
| | 60Hz: 30fps (1920 × 1080) |
| Image settings | Corridor Mode, Saturation, Brightness, Contrast, Sharpness can be adjusted by client or browser |
| BLC | support, selectable area |
| Strong light suppression | support |
| through fog | support |
| image overlay | Support BMP 24-bit image overlay, selectable area |
| Day and night conversion method | Automatic, timing, alarm trigger |
| area of interest | ROI supports three streams to set 2 fixed areas respectively |
| Smart detection | Border crossing detection, area intrusion detection, entry/exit area detection, loitering detection, crowd detection, fast motion detection, parking detection, item left/taken detection, scene change detection, audio steep rise /Steep drop detection, audio detection, virtual focus detection, face detection, vehicle detection, line counting function |
| Smart Recording | Support the function of disconnecting and resuming transmission to ensure that the video is not lost, and cooperate with the Smart NVR to realize the secondary intelligent retrieval, analysis and concentrated playback of the event video |
| Smart image enhancement | Support fog through |
| Smart coding | Support low bit rate, low latency, ROI enhanced coding, SVC adaptive coding technology |
| Smart Alarm | Support network cable disconnection, IP address conflict, memory full, memory error, illegal access abnormal detection and linkage alarm function |
| Storage function | Support Micro SD/SDHC/SDXC card (128G) off-network local storage, NAS (NFS, SMB/CIFS are supported) |
| Interface Protocol | ONVIF,PSIA,CGI,ISAPI,GB28181 |
| Smart alarm | Motion detection, network cable disconnection, IP address conflict, memory full, memory error |
| supporting agreement | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| | PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6(SIP,SRTP optional) |
| General function | One-key recovery, anti-flicker, three-stream, heartbeat, mirroring, password protection, video cover, watermark technology, |
| | Anonymous access, IP address filtering |
| audio port | 1 pair of 3.5mm audio input (Line in)/output external interface |
| Communication Interface | 1 RJ45 10M / 100M / 1000M adaptive Ethernet port, 1 RS-485 interface |
| Alarm input | 1 way |
| Alarm Output | 1 channel, maximum support DC24V 1A or AC110V 500mA |
| video output | 1Vp-p Composite Output(75Ω/CVBS) |
| Ambient noise filtering | support |
| Audio input and output | Support two-channel, stereo |
| Audio sample rate | 16kHz / 32kHz / 44.1kHz / 48kHz |
| Operating temperature and humidity | -30℃~60℃, humidity less than 95% (no condensation) |
| power supply | DC12V / PoE(802.3at) |
| Power consumption | 13.5W MAX |
| Riot class | IK10 |
| Infrared | -I means infrared support |
| Infrared irradiation distance | 30 meters |
| weight | 6kg |
Main features
Smart function
· Smart detection: 10 behavior analysis, 4 abnormal detection, 2 identification detection, 1 statistical function
· Smart recording: Supports the function of disconnecting and resuming transmission to ensure that the recording is not lost, and cooperates with Smart NVR/SD card to realize intelligent post-retrieval, analysis and concentrated playback of event recordings
· Smart coding: supports low bit rate, low latency, enhanced coding of ROI region of interest, and SVC adaptive coding technology
Image correlation
The maximum resolution can reach 2592×1944, and can support real-time output
· Support corridor mode, increase the monitoring area in the longitudinal and narrow environment
· Support area cropping, small bandwidth to see big details
· Stream smoothing settings, adapt to different requirements for image quality and fluency in different scenarios
· Support H.265 / H.264 / MJPEG video compression algorithm, support multi-level video quality configuration, encoding complexity setting
· Support GBK font library, support more Chinese characters and uncommon characters overlay, support OSD color selection
· Support fog penetration, electronic image stabilization
Infrared function (-I optional)
· Adopt high-efficiency infrared array lights, low power consumption, and the irradiation distance can reach 10-30 meters
· Smart IR function, intelligently change the brightness of the infrared light according to the focal length of the lens, so that the infrared supplementary light is uniform, the close objects are not burst, and the distant objects are not missed
System functions
· Support ONVIF (profile S/profile G), CGI, PSIA, ISAPI, GB/T28181 and EHOME protocol access
· Support three-stream technology, dual-channel high-definition, support simultaneous 20-channel streaming
· Support lightning protection, anti-surge, anti-static
· Support wide voltage input
· Support anti-riot level IK10
· Support three-axis adjustment, easy to install
Interface function
· Support standard 128G Micro SD/SDHC/SDXC card storage
· Support 10M/100M/1000M adaptive network port
· Support 1 pair of audio input/output, support two-channel stereo audio
· Support 1 pair of alarm input/output
· Support BNC analog output
Security service
· Support three-level user rights management, support authorized users and passwords, support IP address filtering, support anonymous access
· Support HTTPS, SSH and other security authentication, support to create certificates
· Support user login locking mechanism
Accessories:
Explosion-proof hemisphere wall bracket BL-EX20LB(Z)
Explosion-proof hemisphere hoisting bracket BL-EX40IA(Z)
Explosion-proof camera junction box BL-EXC200A
Explosion-proof camera hose BL-EX100P
Ordering Information:
304 stainless steel 5 million Poe electric zoom super starlight infrared explosion-proof network dome camera BL-EX4504PIZ
316L stainless steel 5 million Poe electric zoom super starlight infrared explosion-proof network dome camera BL-EX4504PIZ/316L
