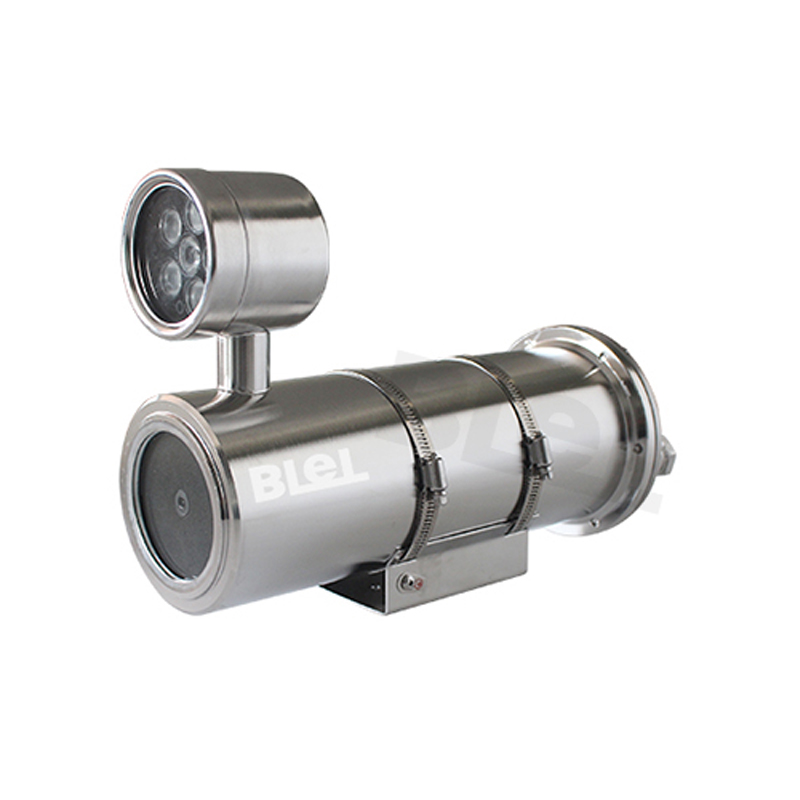

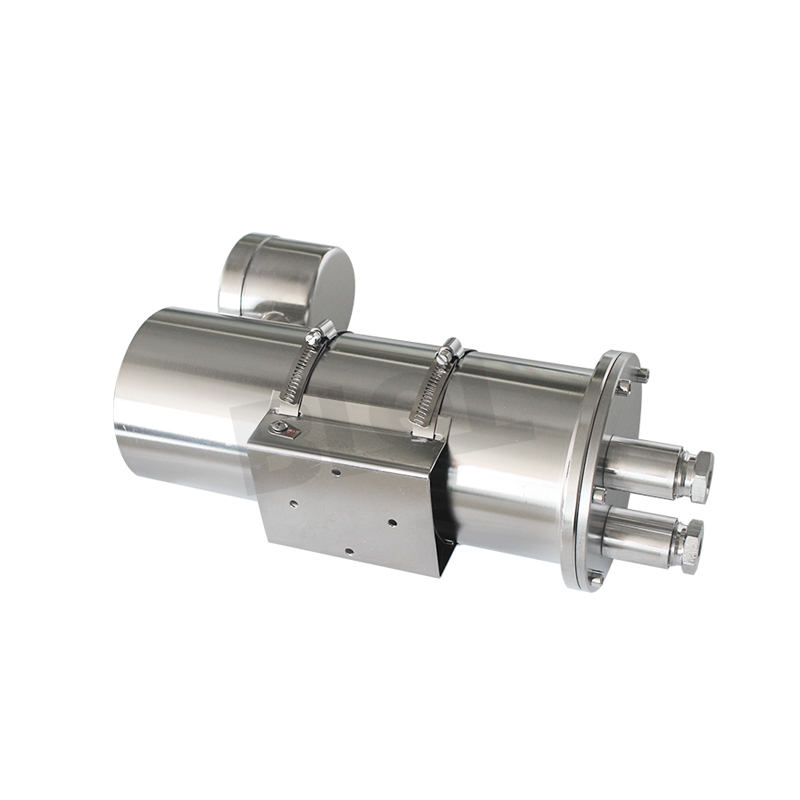

Home / Product / Web video camera / Explosion-proof super starlight bolt / 6000000 / BL-EX366(P)-I8(4/6/8/12mm) 6 million super starlight infrared 100m fixed focus explosion-proof network camera
Application scenarios:
The equipment has obtained the highest certification of Class II explosion-proof level and the highest certification of temperature (T) level. It is suitable for Zone 0, Zone 1, Zone 2 with IIA, IIB, IIC environment, and explosive mixtures formed by explosive and flammable gases and air in groups T1~T6. Zone 20, Zone 21 and Zone 22 where explosive and flammable dust is mixed with air, except for coal mine methane gas, other explosive gas and dust environments. Such as: refining, oil production, gas production, chemical industry, fireworks production, food processing and storage, gas stations and other environments.
Features:
· Explosion proof mark: Exd IIC T6 Gb /ExtD A21 IP68 T80℃
· Protection class: IP68
· Product standard: Q/006-2016
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC/DC POE power supply mode
· The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment
sensor type | 1/2" Progressive Scan CMOS |
Minimum illumination | 0.009 Lux @ (F1.2, AGCON), 0 Lux with IR |
lens | 2.8 mm, horizontal field of view: 99°[(4 mm (80°), 6 mm (60°), 8 mm (38°), 12 mm |
| (24°) optional ] |
Wide dynamic range | 120dB |
shutter | 1/3 s ~ 1/100,000 s |
Day and night switching mode | ICR infrared filter type |
video compression standard | Main stream: H.265/H.264 |
| Substream: H.265/H.264/MJPEG |
H.265 encoding type | Main Profile |
H.264 encoding type | Main Profile/High Profile |
Video compression bit rate | 32 Kbps ~ 16 Mbps |
audio compression standard | G.711/G.722.1/G.726/MP2L2/PCM/AAC |
Audio compression bit rate | 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-192 Kbps(MP2L2)/ |
| 16-64Kbps(ACC) |
Substream Resolution and Frame Rate | 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) |
| 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) |
maximum image size | 3072 × 1728 |
Main stream resolution and frame rate | 50 Hz: 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| 60 Hz: 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) |
image enhancement | Backlight compensation, 3D digital noise reduction |
Image settings | Saturation, Brightness, Contrast, Sharpness, AGC, White Balance, Rotation Adjustable by client or browser |
area of interest | ROI supports setting a fixed area for the main stream and sub-stream respectively |
supporting agreement | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, |
| PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
Interface Protocol | ONVIF(PROFILE S, PROFILE G), ISAPI, GB/T28181 |
General function | Dual stream, heartbeat, mirroring, password protection, video masking, watermark technology, IP address filtering |
Storage function | Support Micro SD/SDHC/SDXC card (128G) disconnected network local storage and disconnected network resume, NAS (NFS, SMB/ |
| CIFS are supported) |
Factory reset | Support RESET button, client or browser recovery |
Anomaly detection | Motion detection, occlusion alarm, network cable disconnection, IP address conflict, memory full, memory error, illegal login |
Smart detection | Regional intrusion detection, out-of-bounds detection |
audio port | 1 channel audio input (Line in), 1 channel audio output (Line out), "S" model supports |
Alarm interface | 1 channel alarm input, 1 channel alarm output (maximum alarm output supports DC12 V, 30 mA), "S" model supports |
Communication Interface | 1 RJ45 10M/100M adaptive Ethernet port |
Protection class | IP67 |
power supply | DC 12 V ± 25%/PoE(802.3af) |
Operating temperature and humidity | -30 ℃ ~ 60 ℃, humidity less than 95% (no condensation) |
Power consumption | BL-EX366-I8: Non-PoE: I3: 6.5 W, I5: 8 W, I8: 11.5 W |
| BL-EX366P-I8: PoE: I3: 8.5 W, I5: 10 W, I8: 12.9 W |
weight | 5kg |
farthest infrared distance | 30m |
Image related:
• 1/2" Progressive Scan CMOS
• 0.009 Lux @ (F1.2, AGC ON), 0 Lux with IR
• 3072 × 1728 @25fps
• Intelligent detection: regional intrusion detection, out-of-bounds detection
• ROI, SVC coding technique
• H.265, H.264, Smart265, Smart264
• 120 dB WDR
• Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• EZVIZ cloud platform access
• Infrared fill light, up to I3: 30 m, I5: 50 m, I8: 80 m
• IP68
Accessories:
Explosion-proof camera wall mount BL-EX40LA
Explosion-proof camera hoisting bracket BL-EX40IA
Explosion-proof camera junction box BL-EXC200A
Explosion-proof camera hose BL-EX100P
Ordering Information:
304 stainless steel 6 million fixed focus super starlight explosion-proof network camera BL-EX366-I8
304 stainless steel 6 million Poe fixed focus super starlight explosion-proof network camera BL-EX366P-I8
316L stainless steel 6 million fixed focus super starlight explosion-proof network camera BL-EX366-I8/316L
316L stainless steel 6 million Poe fixed focus super starlight explosion-proof network camera BL-EX366P-I8/316L
