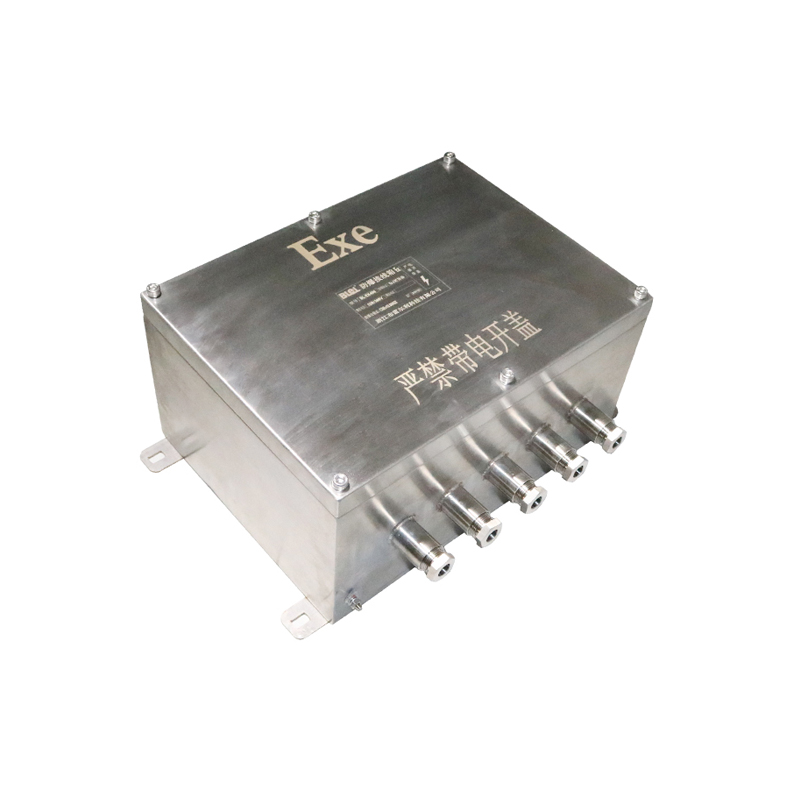

Home / Product / Storage & Application / Explosion-proof access control products / Controller / BL-EXK300 series 304 stainless steel explosion-proof access controller
Product Features
It supports two communication methods, TCP/IP and RS485, which can be used for independent communication or redundant backup. At the same time, it supports HIK ehome protocol to realize cross-public network communication.
Support simultaneous access of RS485 interface and Wiegand interface card reader, Wiegand format supports W26, W34 and other formats.
Supports advanced functions such as multi-door interlocking, anti-passback, multi-card authentication, and central remote door opening.
Supports various alarm mechanisms such as card reader tamper alarm, door not closed alarm, door opened by external force and other alarm mechanisms.
Support a variety of linkage functions, such as fire linkage, I/O linkage, and event linkage.
Built-in RTC, supports NTP time calibration, manual time calibration, and automatic time calibration functions.
Data can be permanently saved after power failure.
Online upgrade function.
It has a watchdog detection function to ensure the long-term stable operation of the host.
model | BL-EXK301 | BL-EXK302 | BL-EXK304 |
Operating Voltage | DC 12V | ||
Power consumption | ≤3.5W (without load) | ||
processor | 32bit | ||
Uplink communication interface | TCP/IP network interface | ||
Downlink communication interface | Wiegand interface | ||
Legal Card/Event Log | 10,000 legal cards and 50,000 swipe records | ||
LED indicator | Power status, communication status, device running status | ||
Built-in clock | Have | ||
Number of card readers that can be connected | 2 card readers with wiegand interface | 4 wiegand interface card readers | Card reader with 4 wiegand ports |
input interface | Door Magnetic*1, Door Open Button*1, Case Input*1 | Door Magnetic*2, Door Open Button*2, Case Input*2 | Door Magnetic*4, Door Open Button*4, Case Input*4 |
Output Interface | Door open relay*1 Alarm relay*1 | Door open relay*2 Alarm relay*2 | Door open relay*4 Alarm relay*4 |
Operating temperature | -20℃ - 65℃ | ||
Working humidity | 10% to 90% (in the state of non-condensing water droplets) |
