Home / Product / Web video camera / Functional camera / Panoramic / iBL-EX480ZA-180(2.8-12mm) 8 million star-level panoramic stitching explosion-proof network camera
Application scenarios:
The equipment has obtained the highest certification of Class II explosion-proof level and the highest certification of temperature (T) level. It is suitable for Zone 0, Zone 1, Zone 2 with IIA, IIB, IIC environment, and explosive mixtures formed by explosive and flammable gases and air in groups T1~T6. Zone 20, Zone 21 and Zone 22 where explosive and flammable dust is mixed with air, except for coal mine methane gas, other explosive gas and dust environments. Such as: refining, oil production, gas production, chemical industry, fireworks production, food processing and storage, gas stations and other environments.
· Explosion proof mark: Exd IIC T6 Gb /ExtD A21 IP68 T80℃
· Protection class: IP68
· Product standard: Q/006-2016
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC/DC POE power supply mode
· The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment
model | iBL-EX480ZA-180(2.8-12mm) |
name | 8 million 1/1.8" starlight panorama stitching network camera |
sensor type | 1/1.8" Progressive Scan CMOS |
shutter | 1 second to 1/100,000 second |
Adjust the angle | Horizontal: 0°~355°, Vertical: 0°~60° |
Day and night switching mode | ICR infrared filter type |
Wide dynamic range | digital wide dynamic |
BLC | support |
digital noise reduction | 3D digital noise reduction |
slow shutter | support |
video compression standard | H.264/MJPEG |
Compressed output bit rate | 32Kbps~16Mbps |
Audio compression bit rate | 64Kbps(G.711) /16Kbps(G.722.1)/16Kbps(G.726) /32-128Kbps(MP2L2) / 16-64Kbps(AAC) |
Main stream resolution and frame rate | Panoramic image: |
| Main stream: 50Hz: 25fps@ (4096×1800, 3840×1680, 2560×1120); 60Hz: 24fps @4096×1800, 30fps@(3840×1680, 2560×1120) |
| Sub-stream: 50Hz: 25fps@ (704 × 320); 60Hz: 30fps@ (704 × 320) |
| The original image: |
| Main stream: 50Hz: 25fps@ (2400×3840, 1200×1680); 60Hz: 24fps@ (2400×3840, 1200×1680) |
| Sub-stream: 50Hz: 25fps@ (480 × 768,320 ×512); 60Hz: 24fps@ (480 × 768,320 ×512) |
maximum image size | 4096×1800 |
Image settings | Saturation, brightness, contrast, sharpness are adjustable through client or IE browser |
BLC | support, selectable area |
Day and night conversion method | Automatic, timing, alarm trigger |
Storage function | Support Micro SD/SDHC/SDXC card (128G) off-network local storage, NAS (NFS, SMB/CIFS are supported) |
Interface Protocol | ONVIF,PSIA,CGI,ISAPI,GB28181 |
Smart alarm | Motion detection, dynamic analysis, occlusion alarm, network cable disconnection, IP address conflict, memory full, memory error |
supporting agreement | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
General function | One-key recovery, anti-flicker, multi-stream, heartbeat, password protection, video masking, watermark technology, anonymous access, IP address filtering |
audio port | 1 pair of 3.5mm audio input (Line in)/output external interface |
Communication Interface | 1 RJ45 10M/100M/1000M adaptive Ethernet port |
Alarm input | 1 way |
Alarm Output | 1 channel, maximum support DC24V 1A or AC110V 500mA |
Ambient noise filtering | support |
Audio input and output | Support two-channel, stereo |
Audio sample rate | 16kHz / 32kHz / 44.1kHz / 48kHz |
Operating temperature and humidity | -30℃~60℃, humidity less than 95% (no condensation), -H heating model supports -40℃~60℃ |
power supply | DC12V / PoE(802.3at), AC24V / PoE(802.3at)(-24VAC) |
Power consumption | 22 MAX |
Riot class | IK10 |
Protection class | IP66 |
Dimensions (mm) | See drawing |
weight | 6kg |
Remark | *A two-wire power supply is required, and the recommended adapter is DC12V 2A, AC24V 1A (-24VAC) |
Main features
Adopt H.264 encoding, the highest resolution can reach 8 million pixels (4096×1800), and transmit real-time images
· Progressive scan CMOS, capturing motion images without aliasing
·Smooth stream setting, adapt to the different requirements of customers for image quality and fluency in different scenarios
·Support GBK font, support more Chinese characters and uncommon characters superimposed, support OSD color selection
·Using ROI, SVC and other video compression technologies, high compression ratio, and very flexible processing, ultra-low delay, ultra-low bit rate
Support 120dB ultra-wide dynamic, support 3D digital noise reduction function
·Support up to 128G Micro SD/SDHC/SDXC card local storage
· ICR infrared filter type automatic switching to achieve real day and night monitoring; support independent configuration of two sets of parameters for day and night
·Support fog penetration, and has a variety of white balance modes, suitable for various scene needs
Support backlight compensation, automatic electronic shutter function, automatic aperture, slow shutter, adapt to different monitoring environments
· Support a variety of intelligent functions
·Full-featured: image overlay, anonymous access, IP address filtering, heartbeat, alarm, one-key recovery, etc.
·Support GB28181 protocol, support EHOME platform access
·Support NAS, Email, FTP, NTP server test
· Support HTTPS, SSH and other security authentication, support to create certificates
·The anti-riot level supports IK10
·Protection class IP66
Support user login locking mechanism, and password complexity prompt

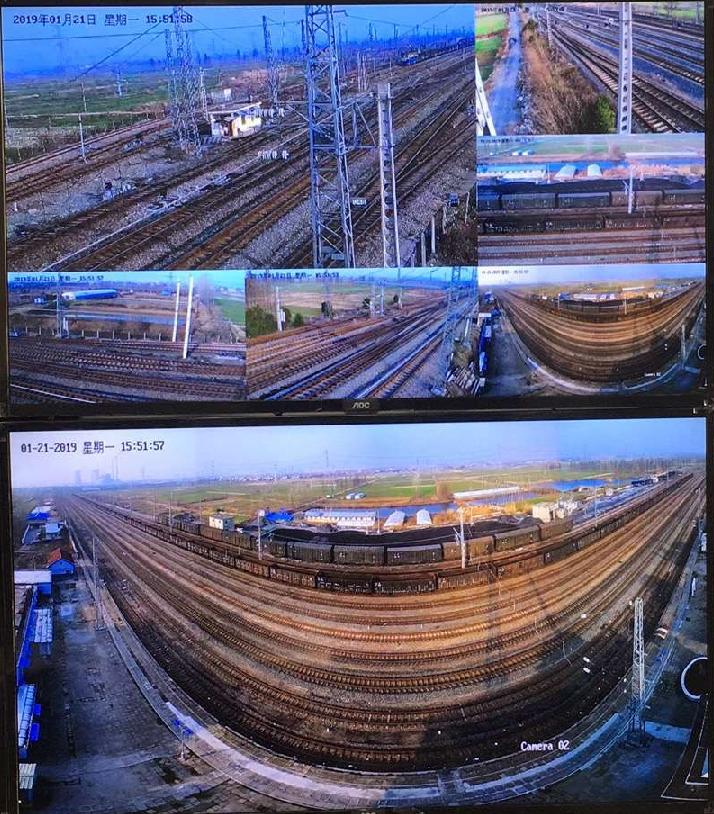

Application scenarios
Accessories:
Explosion-proof camera wall bracket BL-EX20LB(Z)
Explosion-proof camera junction box 400X300X200
1 meter flame retardant rubber explosion-proof hose BL-EX100P
Ordering Information:

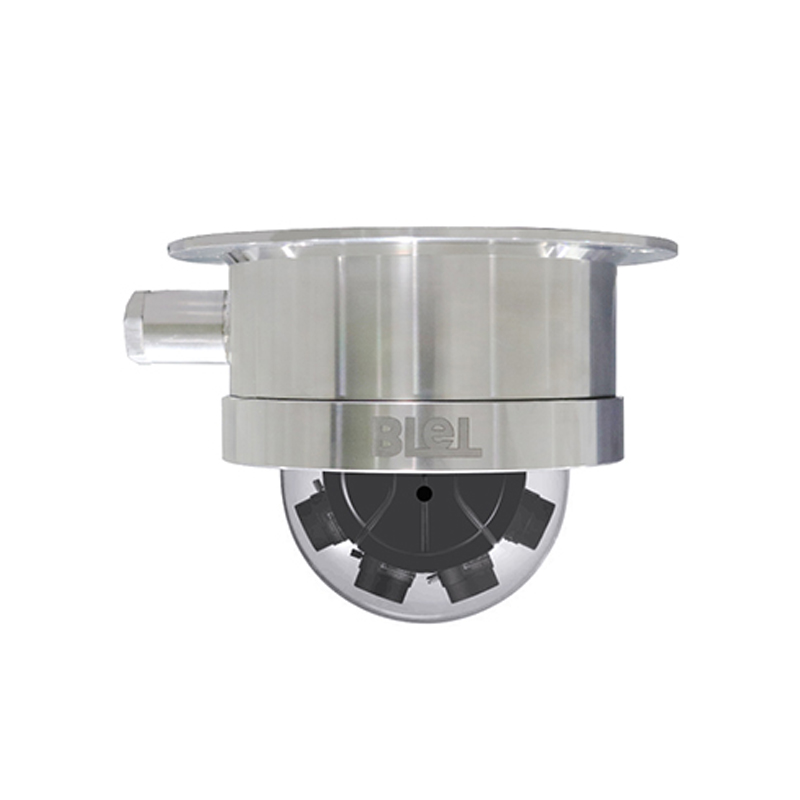

8 million panoramic explosion-proof dome camera iBL-EX480ZA-180(2.8-12mm)
