Application scenarios:
The equipment has obtained the highest certification of Class II explosion-proof level and the temperature ( T ) the highest level of certification, suitable for A , II B , II C surroundings, T1 ~ T6 Group of explosive mixtures of explosive and flammable gases and air 0 Area, 1 Area, 2 Areas and places where explosive and flammable dust is mixed with air 20 Area, 21 Area, 22 In addition to coal mine methane gas, other explosive gas and dust environments in the area with explosive risk. Such as: refining, oil production, gas production, chemical industry, fireworks production, food processing and storage, gas stations and other environments.
Features:
· Explosion-proof mark: Exd IIC T6 Gb /ExtD A21 IP68 T80 °C
· Protection class: IP68
· Product Standards: Q/006-2016
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC and DC POE Power supply
· The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment
name | 200 Ten thousand 1/1.8”CMOS Intelligent face day and night barrel network camera |
lens | 8-32mm F1.4, Horizontal field of view 42.2°~13.5° |
sensor type | 1/1.8" Progressive Scan CMOS |
shutter | 1/25 seconds to 1/100 , 000 second |
Day and night switching mode | ICR Infrared filter type |
Wide dynamic range | Ultra wide dynamic range up to 120dB , monitoring in indoor backlight environment |
digital noise reduction | 3D digital noise reduction |
Minimum illumination | color :0.0002 Lux @(F1.2,AGCON) ; |
black and white :0.0001Lux @(F1.2,AGCON) , 0 Lux with IR | |
video compression standard | 32Kbps~16Mbps |
video compression standard | H.265 / H.264 / MJPEG |
H.265 encoding type | Main Profile |
H.264 encoding type | BaseLine Profile / Main Profile / High Profile |
audio compression standard | G.711u/G.711a/G.722.1/G.726/MP2L2/AAC/PCM |
Audio compression bit rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-160Kbps(MP2L2)/ 16-64Kbps(AAC) |
image enhancement | Backlight compensation, strong light suppression, fog penetration, electronic image stabilization, 3D Noise reduction |
region clipping | support |
maximum image size | 1920 × 1080 |
frame rate | 50Hz: 25fps (1920 × 1080, 1280 × 720) |
60Hz: 30fps (1920 × 1080, 1280 × 720) | |
Resolution and frame rate of the third stream | Independent of the main stream settings, supports up to: |
50Hz : 25fps (1920 × 1080) ; | |
60Hz : 30fps(1920×1080) | |
Image settings | Saturation, brightness, contrast, sharpness can be adjusted by client or browser |
area of interest | ROI Support three streams to be set separately 4 Fixed-area, full-screen dynamic face tracking |
image overlay | support BMP 24 Bit image overlay, selectable area |
face capture | It supports detecting, tracking, capturing, scoring, and screening moving faces, and outputting the best face snapshots. |
Screenshot resolution | Resolution: 1920*1080/1280*720 optional |
Background big picture picture character overlay function | Support device number, capture time, monitoring point information |
Capture times | Support snapshot times ( 1-10 times) can be set |
face exposure | support |
Smart fill light | The device has built-in high-efficiency white light array lights, which can be turned on regularly |
Interface Protocol | ONVIF(PROFILE S,PROFILE G),CGI,ISAPI,GB28181,Ehome |
Smart alarm | Motion detection, occlusion alarm, network cable disconnection, IP Address conflict, memory full, memory error, |
Unauthorized access | |
General function | One-click recovery , Anti-flicker , five-stream , heartbeat , mirror , password protection , video cover , watermarking technology ,IP address filtering |
supporting agreement | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
Storage function | support Micro SD/SDHC/SDXC Card (128G) Disconnect local storage, |
NAS (NFS , SMB/CIFS Both support ) | |
audio port | 1 for audio input (Line in )/ Output Interface |
Communication Interface | 1 indivual RJ45 10M / 100M / 1000M Adaptive Ethernet port ,1 indivual RS-485 interface |
Alarm interface | 2 input for alarm / Output Interface ( Alarm output maximum support DC24V 1A or AC110V 500mA) |
Video input interface | 1Vp-p Composite Output(75Ω/CVBS) |
Ambient noise filtering | support |
Audio sample rate | maximum 48KHz |
Power interface type | Two-core power interface |
farthest white light distance | up to 30 Meter. |
Operating temperature and humidity | -30℃~60℃, Humidity is less than 95%( no condensation ) |
power supply | DC12V±20% / PoE(802.3at) |
Power consumption | DC 12V : 15.5W MAX |
PoE : 22W MAX | |
Protection class | IP68 |

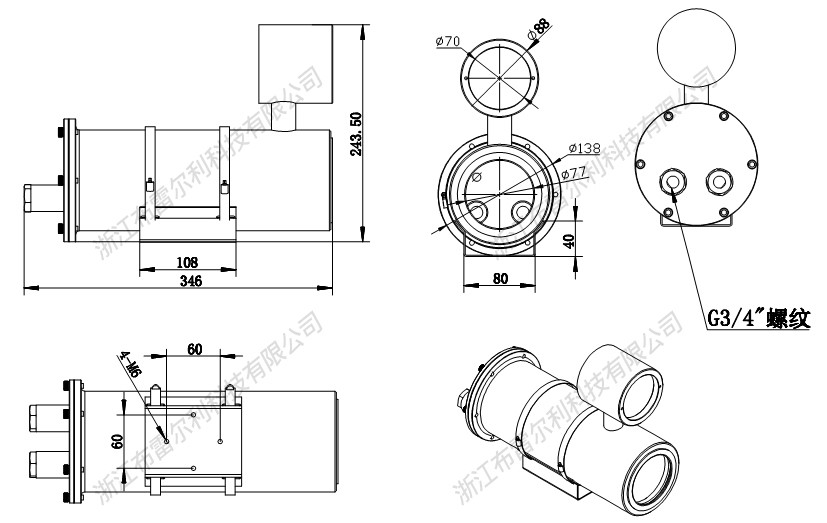

size( mm ) | See drawing |
weight | 8kg |
* | *"-S" means to have 1 for audio input (Line in)/ Output Interface, 2 input for alarm / Output Interface |
( Alarm output maximum support DC24V 1A or AC110V 500mA) and 1 indivual RS-485 interface | |
* It is recommended to configure a two-wire power supply |
Professional smart function
· Using deep learning algorithms, using massive pictures and video resources as roadbeds, the machine itself extracts target features to form deep face images for learning. The detection rate of the target face is greatly improved.
Support face capture function, support detection, tracking, capture, scoring, screening of moving faces, and output the optimal face capture
· Support face tracking and scoring, multi-frame recognition, automatic screening and output of the best face, and reduce repeated snapshots
· Capture resolution ( 1920*1080/1280*720 ) and quality (best / better / General) optional, adapt to network transmission
· Support the function of superimposing the characters of the background big picture and pictures, and support the device number, snapshot time, and monitoring point information
· Support face interpupillary distance 20 More than Pixel Face Detection
· Support the number of snapshots ( 1-10 times) can be set
· Support face exposure function
· Wide dynamic range up to 120dB , monitoring in indoor backlight environment
The device has built-in high-efficiency white light array lights, low power consumption, and can normally capture faces at night
The device has a built-in electric zoom lens, which is easy to operate and the zoom process is stable
General function
· Smart Recording: Supports the function of disconnecting and resuming transmission to ensure that the recording is not lost. Smart NVR/SD The card realizes intelligent post-retrieval, analysis and condensed playback of event recordings
· Smart Encoding: support low bit rate, low latency, ROI Region of Interest Enhanced Coding, SVC Adaptive Coding Technology , support smart265 coding
· Highest resolution 200 CMOS( 1920 × 1080 ), and can output at this resolution 30fps Live image, smoother image
· Support fog penetration, electronic image stabilization
· support ONVIF(profile S/profile G) , ISAPI , GB/T28181 and E home protocol access
· Support five-stream technology, dual-channel high-definition, support simultaneous 20 road flow
· Support standard 128G Micro SD/SDHC/SDXC card storage
· support 10M/100M/1000M Adaptive network port
· support 1 for audio input / output (-S support )
· support 2 input for alarm / output (-S support )
· Support three-level user rights management, support authorized users and passwords, support IP address filtering
Application scenarios
Mine, tunnel, energy, chemical, petroleum, petrochemical, gas station, electricity, steel, construction site, school laboratory, fireworks, firecrackers, ships, special vehicles , , piers, islands, etc.
Accessories:
Explosion Proof Camera Wall Mount Bracket BL-EX40LA
Explosion-proof camera gimbal BL-EX10ZA
Explosion-proof camera junction box 400X300X200
1 Rice flame retardant rubber explosion-proof hose BL-EX100P
Ordering Information:
200 Ten thousand face capture network explosion-proof camera iBL-EX320-I8ZP(2.8-12mm)
