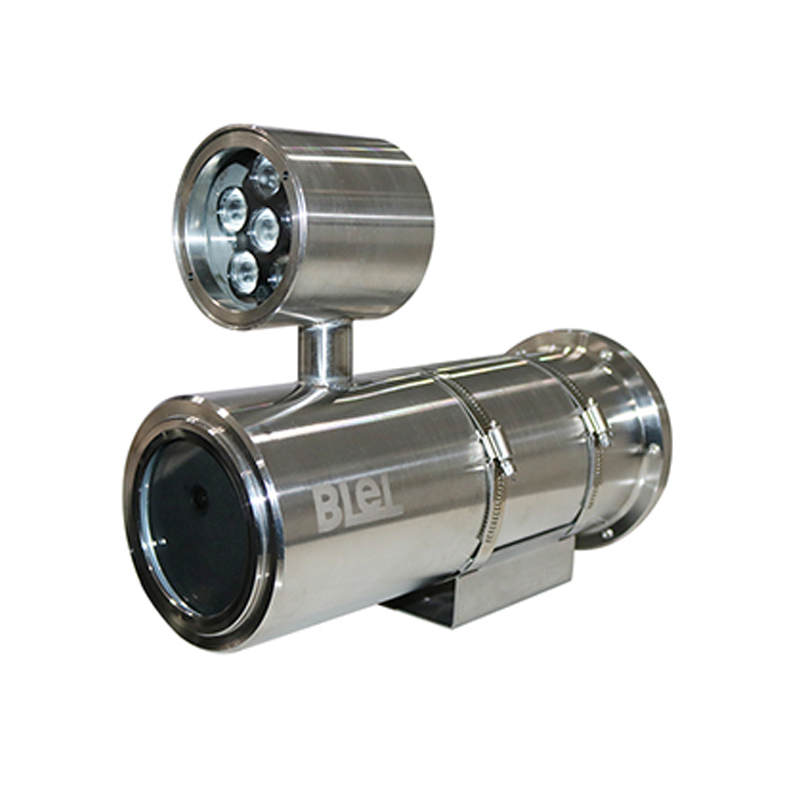

| name | 200 Ten thousand 1/1.8" CMOS Smart face tube network camera |
| maximum image size | 1920 × 1080 |
| sensor type | 1/1.8" Progressive Scan CMOS |
| shutter | 1/25 seconds to 1/100 , 000 second |
| Auto iris | DC drive |
| Day and night switching mode | ICR Infrared filter type |
| Wide dynamic range | Ultra wide dynamic range 120dB , suitable for monitoring in backlight environment |
| digital noise reduction | 3D digital noise reduction |
| slow shutter | support |
| Minimum illumination | color: 0.001Lux, Black and white: 0.0001Lux,0Lux with LED |
| video compression standard | H.265 / H.264 / MJPEG |
| H.265 encoding type | Main Profile |
| H.264 encoding type | BaseLine Profile / Main Profile / High Profile |
| Video compression bit rate | 32Kbps~16Mbps |
| audio compression standard | G.711/G.722.1/G.726/MP2L2/AAC/PCM |
| Audio compression bit rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-160Kbps(MP2L2)/ 16-64Kbps(AAC) |
| Main stream resolution and frame rate | 50Hz: 25fps (1920 × 1080,1280 × 720) |
| 60Hz: 30fps (1920 × 1080,1280 × 720) |
| maximum image size | 3072 × 2048 |
| Resolution and frame rate of the third stream | Independent of the main stream settings, supports up to: 50Hz: 25fps (1920 × 1080) ; 60Hz: 30fps (1920 × 1080) |
| Image settings | saturation , brightness , Contrast , Sharpness adjustable via browser or client |
| BLC | support , selectable area |
| image overlay | support BMP 24 bitmap overlay , selectable area |
| Day and night conversion method | automatic , timing , Alarm trigger |
| area of interest | ROI Support three streams to be set separately 4 fixed area |
| Anomaly detection | audio jump / Descent detection , Audio detection |
| face capture | It supports detecting, tracking, capturing, scoring, and screening moving faces, and outputting the best face snapshots. |
| Screenshot resolution | Resolution: 1920*1080/1280*720 optional |
| Background big picture picture character overlay function | Support device number, capture time, monitoring point information |
| Capture times | Support snapshot times ( 1-10 times) can be set |
| face exposure | support |
| Interface Protocol | ONVIF(PROFILE S,PROFILE G),ISAPI,GB28181,Ehome |
| Smart alarm | Motion Detection , Occlusion alarm , network cable disconnected ,IP address conflict , memory full , memory error , Unauthorized access |
| General function | One-click recovery , Anti-flicker , five-stream , heartbeat , mirror , password protection , video cover , watermarking technology ,IP address filtering |
| supporting agreement | ONVIF(PROFILE S, PROFILE G), ISAPI, GB/T 28181, Ehome |
| Storage function | support Micro SD/SDHC/SDXC Card (128G) Disconnected local storage and disconnected network resume ,NAS(NFS,SMB/CIFS Both support ) |
| Ambient noise filtering | support |
| Audio sample rate | maximum 48KHz |
| Communication Interface | 1 indivual RJ45 10M / 100M/1000M Adaptive Ethernet port |
| video output | 1 indivual BNC Analog output (-S Model support ) |
| audio port | 1 for audio input (Line in)/ Output Interface |
| Alarm interface | 2 input for alarm / Output Interface ( Alarm output maximum support DC24V 1A or AC110V 500mA) |
| Communication Interface | support 1 indivual RS-485 interface |
| Power interface type | Three-pin power connector |
| power supply | DC36V |
| Power consumption | 42 MAX |

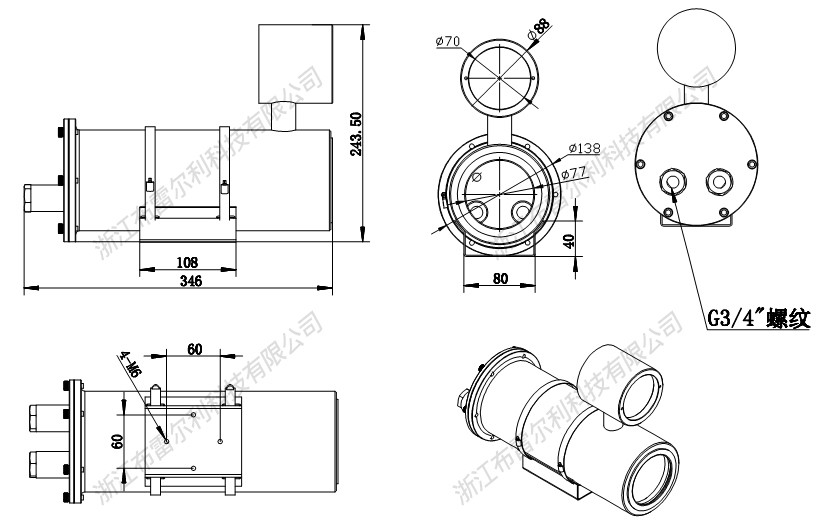

| size( mm ) | See drawing |
| weight | 8kg |
| * | -S: have 1 right 3.5mm audio input (Line in)/ Output Interface, 1 indivual BNC analog output, 2 input for alarm / Output Interface ( Alarm output maximum support DC24V 1A or AC110V 500mA) and 1 indivual RS-485 interface |
| * The camera comes with the factory DC36V Three-wire power supply |
Professional smart function
The face camera consists of a white light zoom tube camera with high performance GPU It is composed of modules, embedded with deep learning algorithms, using massive pictures and video resources as the roadbed, and extracting target features through the machine itself to form deep face images for learning. The detection rate of the target face is greatly improved.
Support face capture function, can simultaneously 30 face detection and capture
Support face tracking and scoring, multi-frame recognition, automatically filter and output the optimal face, and reduce repeated snapshots
Capture resolution ( 1920*1080/1280*720 ) and quality (best / better / General) optional, adapt to network transmission
Support the function of superimposing the characters of the background big picture and picture, support the device number, capture time, monitoring point information
Support front-end face comparison
support the most 3 Personal face database management
support the most 9 Importing thousands of faces
Supports the assignment of two custom fields of the stored face
Supports the maximum storage space of the total face database 3GB , a single face does not exceed 300Kb
Support different face databases to arm at different times
Support blacklist comparison success alarm output
Support face pupil distance 20 More than Pixel Face Detection
Support snapshot times ( 1-10 times) can be set
Support face exposure function
Supports wide dynamic range up to 120dB , suitable for backlight environment monitoring
The device has built-in high-efficiency white light array lights, low power consumption, and can normally capture faces at night
The device has a built-in electric zoom lens, which is easy to operate and the zoom process is stable
General function
Smart Function
Smart Video recording: Support the function of disconnecting and resuming transmission to ensure that the video is not lost. Smart NVR/SD The card realizes intelligent post-retrieval, analysis and condensed playback of event recordings
Smart Encoding: support low bit rate, low latency, ROI Region of Interest Enhanced Coding, SVC Adaptive coding technology, supports smart265/264 coding
Image correlation
support HD1920 × 1080@30fps Real-time frame rate, smoother image
Support strong light suppression
Support fog penetration, electronic image stabilization
System functions
support ONVIF(profile S/profile G) , CGI , PSIA , ISAPI , GB/T28181 and E home protocol access
Support five-channel code stream technology, dual-channel high-definition, support simultaneous 20 road flow
Interface function
supports standard 128G Micro SD/SDHC/SDXC card storage
support 10M/100M/1000M Adaptive network port
support 1 for audio input / output
support 2 input for alarm / output
Security service
Support three-level user rights management, support authorized users and passwords, support IP address filtering
hardware function
All-round waterproof equipment, built-in sun visor, dustproof
Application scenarios
Mine, tunnel, energy, chemical, petroleum, petrochemical, gas station, electricity, steel, construction site, school laboratory, fireworks, firecrackers, ships, special vehicles , , piers, islands, etc.

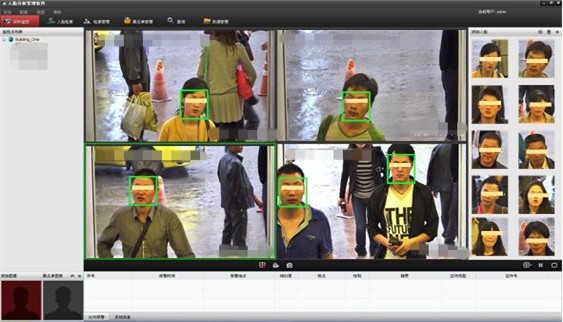

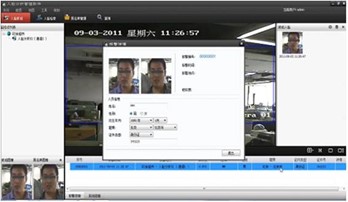

Interface demo
