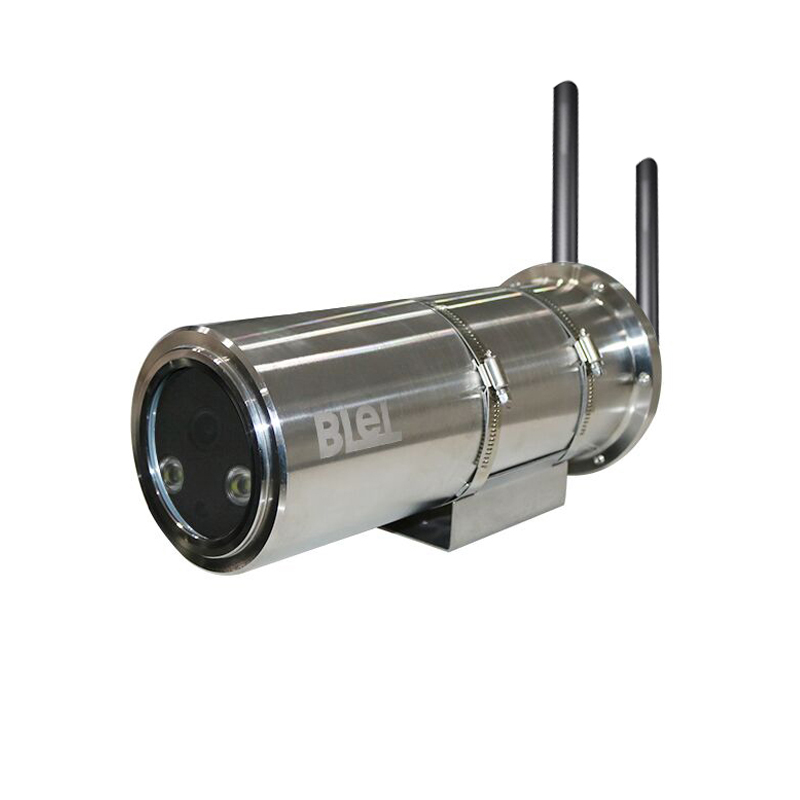

Home / Product / Web video camera / Functional camera / WIFI&4G / BL-EX325-I5W 2 million infrared 50 meters fixed focus wireless WIFI explosion-proof camera
Application scenarios:
The equipment has obtained the highest certification of Class II explosion-proof level and the temperature ( T ) the highest level of certification, suitable for A , II B , II C surroundings, T1 ~ T6 Group of explosive mixtures of explosive and flammable gases and air 0 Area, 1 Area, 2 Areas and places where explosive and flammable dust is mixed with air 20 Area, 21 Area, 22 In addition to coal mine methane gas, other explosive gas and dust environments in the area with explosive risk. Such as: refining, oil production, gas production, chemical industry, fireworks production, food processing and storage, gas stations and other environments.
Features:
· Explosion-proof mark: Exd IIC T6 Gb /ExtD A21 IP68 T80 °C
· Protection class: IP68
· Product Standards: Q/006-2016
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC and DC POE Power supply
· The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment
sensor type | 1/2.7" Progressive Scan CMOS |
Minimum illumination | color : 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
lens | 4 mm, Horizontal field of view : 91.1 ° [6 mm (56 ° ), 8 mm(42.4 ° ) optional ] |
Wide dynamic range | digital wide dynamic |
shutter | 1/3 s ~ 1/100,000 s |
Day and night switching mode | ICR Infrared filter type |
video compression standard | main stream , substream : H.265/H.264 |
H.265 encoding type | Main Profile |
H.264 encoding type | BaseLine Profile/Main Profile |
Video compression bit rate | 32 Kbps ~ 8 Mbps |
audio compression standard | G.711/G.722.1/G.726/MP2L2/PCM/AAC |
Audio compression bit rate | 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 ~ 160 Kbps(MP2L2)/16 ~ 64 Kbps(AAC) |
maximum image size | 1920 × 1080 |
image enhancement | BLC , Strong light suppression , 3D digital noise reduction |
frame rate | main stream : 50 Hz: 25 fps (1920 × 1080, 1280 × 720) |
substream : 50 Hz: 25 fps (640 × 360) | |
Image settings | saturation , brightness , Contrast , sharpness , AGC, White balance adjustable via client or browser |
supporting agreement | TCP/IP, ICMP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IPv6, UDP, QoS, Bonjour |
Interface Protocol | ISAPI, SDK |
General function | heartbeat , mirror , password protection , watermarking technology |
Storage function | support Micro SD/Micro SDHC/Micro SDXC Card (256GB) Disconnected local storage and disconnected network resume , NAS(NFS, SMB/CIFS Both support ) |
Factory reset | support RESET button , Client or browser recovery |
Anomaly detection | Motion Detection , The network cable is broken , IP address conflict , Illegal login , memory full , memory error |
audio port | built-in 1 microphones |
Communication Interface | 1 indivual RJ45 10M/100M |
Audio sample rate | 8kHz/16kHz |
wireless standard | IEEE802.11b, 802.11g, 802.11n |
Frequency Range | 2.4 GHz ~ 2.4835 GHz |
channel bandwidth | support 20/40MHz |
Modulation | 802.11g: OFDM |
802.11n: OFDM | |
802.11b: CCK, QPSK, BPSK | |
Safety | 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK |
Transmission rate | 11b: upper limit 11 Mbps |
11g: upper limit 54 Mbps | |
11n: upper limit 300Mbps | |
Transmission distance | 120 m ( No occlusion and no interference , Varies by environment ) |
Protection class | IP68 |
power supply | DC12V ± 25%, Φ 5.5mm round mouth |
Operating temperature and humidity | -30 °C ~ 60 °C , Humidity is less than 95%( no condensation ) |
Power consumption | 6W Max |
weight | 5kg |
farthest infrared distance | 50m |
Features
1/2.7" Progressive Scan CMOS
1920 × 1080@25fps
0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
H.265, H.264
BLC , Strong light suppression , 3D digital noise reduction
EZVIZ Cloud Platform Access
support Wi-Fi, External dual antenna , Open area up to 120 m
built-in 1 microphones , HD pickup ( Optional )
support Micro SD/Micro SDHC/Micro SDXC Card , maximum 256 GB
Infrared light fill light , as far as possible 30 m
IP68
Accessories:
Explosion Proof Camera Wall Mount Bracket BL-EX40LA
Explosion-proof camera hoisting bracket BL-EX40IA
Explosion-proof camera junction box 200X150X100
Explosion-proof camera hose BL-EX100P
Ordering Information:
304 Stainless steel 200 Ten thousand wifi Fixed focus infrared explosion-proof network camera BL-EX325-I5W
316L Stainless steel 200 Ten thousand wifi Fixed focus infrared explosion-proof network camera BL-EX325-I5W/316L
