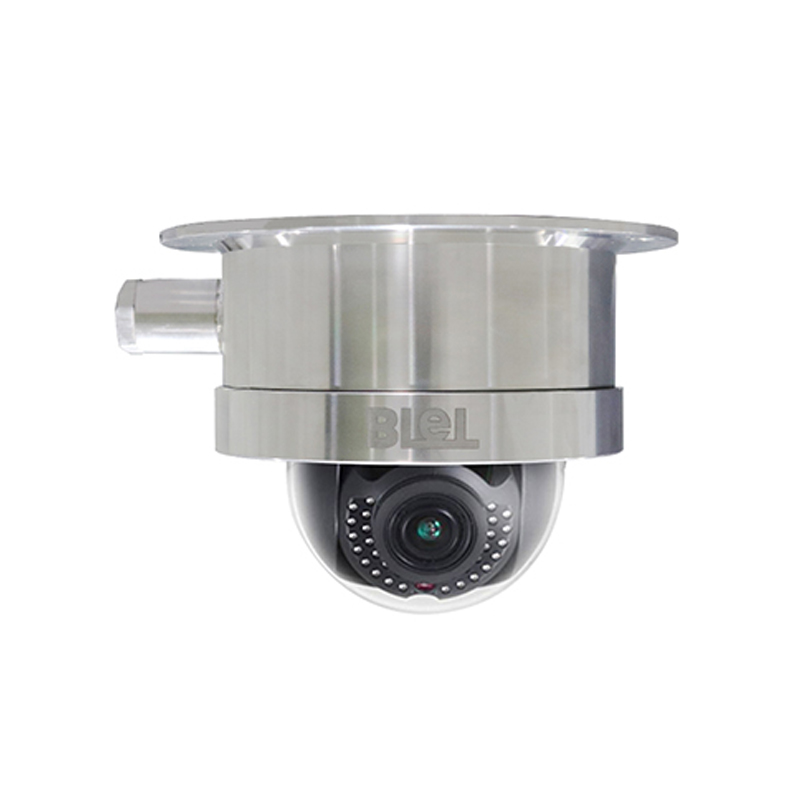

Home / Product / Web video camera / Functional camera / Behavioral analysisintelligent / iBL-EX420IZ (2.8-12mm) 2 million behavior analysis intelligent explosion-proof dome network camera
Application scenarios:
The equipment has obtained the highest certification of Class II explosion-proof level and the temperature ( T ) the highest level of certification, suitable for A , II B , II C surroundings, T1 ~ T6 Group of explosive mixtures of explosive and flammable gases and air 0 Area, 1 Area, 2 Areas and places where explosive and flammable dust is mixed with air 20 Area, 21 Area, 22 In addition to coal mine methane gas, other explosive gas and dust environments in the area with explosion hazard. Such as: refining, oil production, gas production, chemical industry, fireworks production, food processing and storage, gas stations and other environments.
Features:
· Explosion-proof mark: Exd IIC T6 Gb /ExtD A21 IP68 T80 °C
· Protection class: IP68
· Product Standards: Q/006-2016
· Stainless steel material design, double explosion-proof certification
· Wide voltage design supports user-customized AC and DC POE Power supply
· The window glass is precisely processed, with self-cleaning function, and can be used in a hydrofluoric acid environment
model | iBL-EX320Z |
name | 200 Ten thousand 1/2.8" ultra wide dynamic CMOS ICR Day and Night Dome IP Camera |
sensor type | 1/2.8" Progressive Scan CMOS |
shutter | 1 seconds to 1/100,000 second |
Auto iris | DC drive |
Adjust the angle | Level :0°~355°, vertical :0°~75°, rotate 0°~355° |
Day and night switching mode | ICR Infrared filter type |
Wide dynamic range | 120dB |
video compression standard | H.264 / MPEG4 / MJPEG |
Compressed output bit rate | 32Kbps~16Mbps |
Audio compression bit rate | 64Kbps(G.711) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
maximum image size | 1920×1080 |
frame rate | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) ; |
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
Image settings | corridor mode , saturation , brightness , Contrast , Sharpness adjustable via client or browser |
BLC | support , selectable area |
Electronic image stabilization | support |
through fog | support |
image overlay | support BMP 24 bitmap overlay , selectable area |
Day and night conversion method | automatic , timing , Alarm trigger |
area of interest | ROI Support dual stream settings separately 4 fixed area or dynamic tracking |
Smart detect | Support intelligent behavior analysis function , Including crossing the warning surface , enter the area , leave the area , area invasion , wandering , item pick up , items left behind , parking , move quickly , people gathering, etc. |
Scene Change Detection , Audio Anomaly Detection , virtual focus detection , Motion Detection , Dynamic Analysis | |
Smart video | Support the function of disconnecting and resuming transmission to ensure that the video is not lost. Smart NVR Realize secondary intelligent retrieval, analysis and condensed playback of event recordings |
Smart image enhancement | support fog |
Smart coding | Support low bit rate, low latency, ROI Region of Interest Enhanced Coding, SVC Adaptive Coding Technology |
Smart Call the police | Support network cable disconnection, IP Address conflict, memory full, memory error, illegal access abnormal detection and linkage alarm function |
Storage function | support Micro SD/SDHC/SDXC Card (64G) Disconnected local storage ,NAS |
Interface Protocol | ONVIF,PSIA,CGI,ISAPI,GB28181 |
Smart alarm | Motion Detection , Occlusion alarm , The network cable is broken ,IP address conflict , memory full , memory error |
supporting agreement | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
General function | One-click recovery , Anti-flicker , dual stream , heartbeat , mirror , password protection , video cover , watermarking technology , anonymous access ,IP address filtering |
audio port | 1 right 3.5mm audio input (Mic in/Line in)/ output external interface |
Communication Interface | 1 indivual RJ45 10M/100M Adaptive Ethernet port, 1 indivual RS-485 interface |
Alarm input | 1 road |
Alarm Output | 1 road |
video output | 1Vp-p Composite Output(75Ω/CVBS) |
Ambient noise filtering | support |
Audio input and output | Support two-channel, stereo |
Audio sample rate | 16kHz / 32kHz / 44.1kHz / 48kHz |
Operating temperature and humidity | -30℃~60℃, Humidity is less than 95%( no condensation ) |
power supply | DC12V / PoE(802.3at) |
Power consumption | 13.5W MAX |
Riot class | IK10 |
Infrared irradiation distance | 30 Meter |
weight | 5kg |
Main features
· Highest resolution 200 CMOS( 1920 × 1080 ) , and output at this resolution 30fps live image
·line-by-line scan CMOS, Capture moving images without aliasing
·Smooth stream setting, adapt to the different requirements of customers for image quality and fluency in different scenarios
·support GBK Font library, support more Chinese characters and uncommon characters superimposed , support OSD Color optional
·use ROI , SVC video compression technology , High compression ratio , and very flexible , Ultra low latency , Ultra low bit rate
·support 120dB ultra wide dynamic , support 3D digital noise reduction
· Support maximum 128G Micro SD/SDHC/SDXC Card local storage
· ICR Automatic switching of infrared filters , Realize true day and night monitoring ; Support independent configuration of two sets of parameters day and night
·Using high-efficiency infrared light , long lasting , Irradiation distance up to 10-30 Meter
·Support power zoom lens
·Three-axis adjustment , Support local analog output , Easy to install and adjust
·Maximum support 20 road concurrent access , Support mobile phone monitoring
·Support fog through , Electronic image stabilization , And has a variety of white balance modes , Suitable for various scenarios
· Support backlight compensation , Automatic electronic shutter function , Auto iris , slow shutter , corridor mode , Adapt to different monitoring environments
·Support intelligent behavior analysis function , Including crossing the warning surface , enter the area , leave the area , area invasion , wandering , item pick up , items left behind , parking , move quickly , people gathering, etc.
·With scene change detection , Audio Anomaly Detection , virtual focus detection , Motion Detection , Dynamic analysis and other alarm functions
·Support intelligent post-retrieval, cooperate with NVR Secondary retrieval analysis of support events
·full functioning : image overlay , anonymous access ,IP address filtering , heartbeat , mirror ,PTZ control , Call the police , One-click recovery, etc.
·support GB28181 protocol, support EHOME Platform access
·support NAS , Email , FTP , NTP server test
·support HTTPS,SSH and other security authentication, support the creation of certificates
· Riot class support IK10
Support user login locking mechanism, and password complexity prompt
Application scenarios
It is suitable for scenarios where an alarm is required when someone appears, such as dangerous warning areas during non-working hours, docks, unattended oil fields, oil depots, power stations, etc.
[Note] Scenarios not recommended for use:
Most of the pictures are leaves; the light changes too frequently;
The picture brightness is too low; the object in the picture is too small.
Accessories:
Explosion Proof Hemisphere Wall Mount Bracket BL-EX20LB(Z)
Explosion-proof hemisphere hoisting bracket BL-EX40IA(Z)
Explosion-proof camera junction box 200X150X100
Explosion-proof camera hose BL-EX100P
Ordering Information:
304 Stainless steel 200 Ten thousand 4 Times Behavior Analysis Explosion-Proof Network Dome Camera iBL-EX420IZ(4x)
316L Stainless steel 200 Ten thousand 4 Times Behavior Analysis Explosion-Proof Network Dome Camera iBL-EX420IZ(4x)/316L
